Body Alignment: Underbody: Measurement

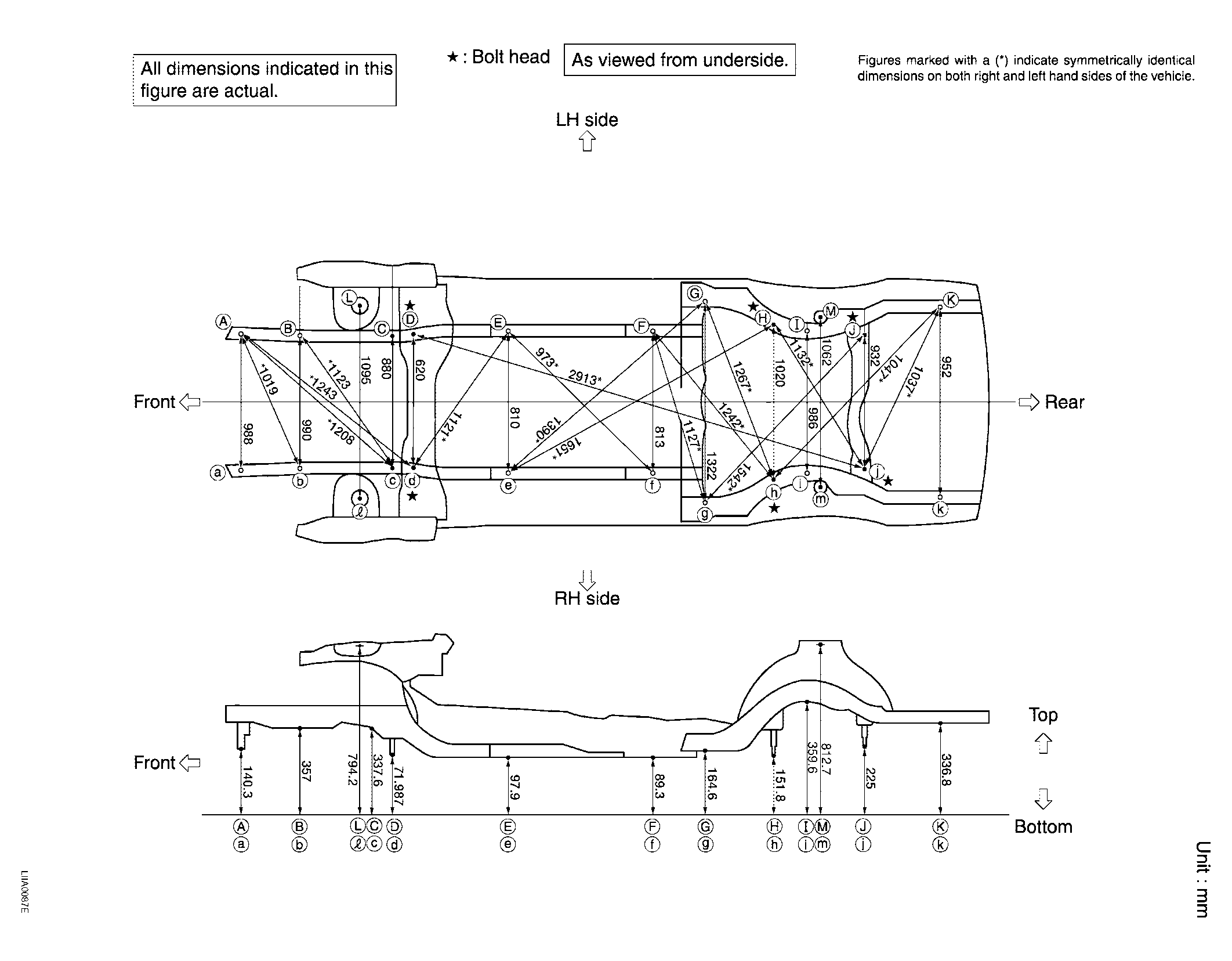

Fig 1: Measurement Of Underbody
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
