Trouble Diagnosis: Schematic

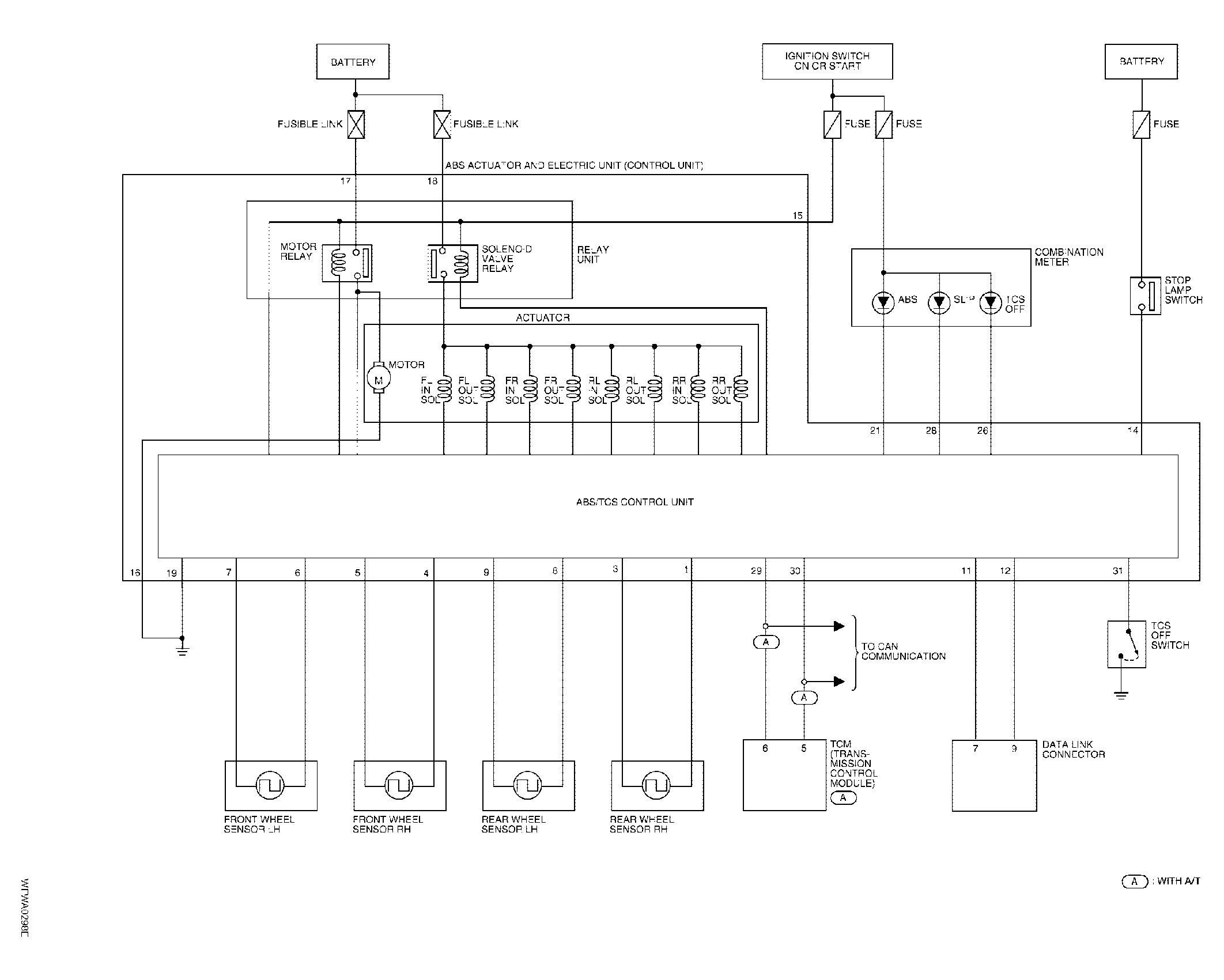

Fig 1: Trouble Diagnosis Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
