Board Computer: Schematic

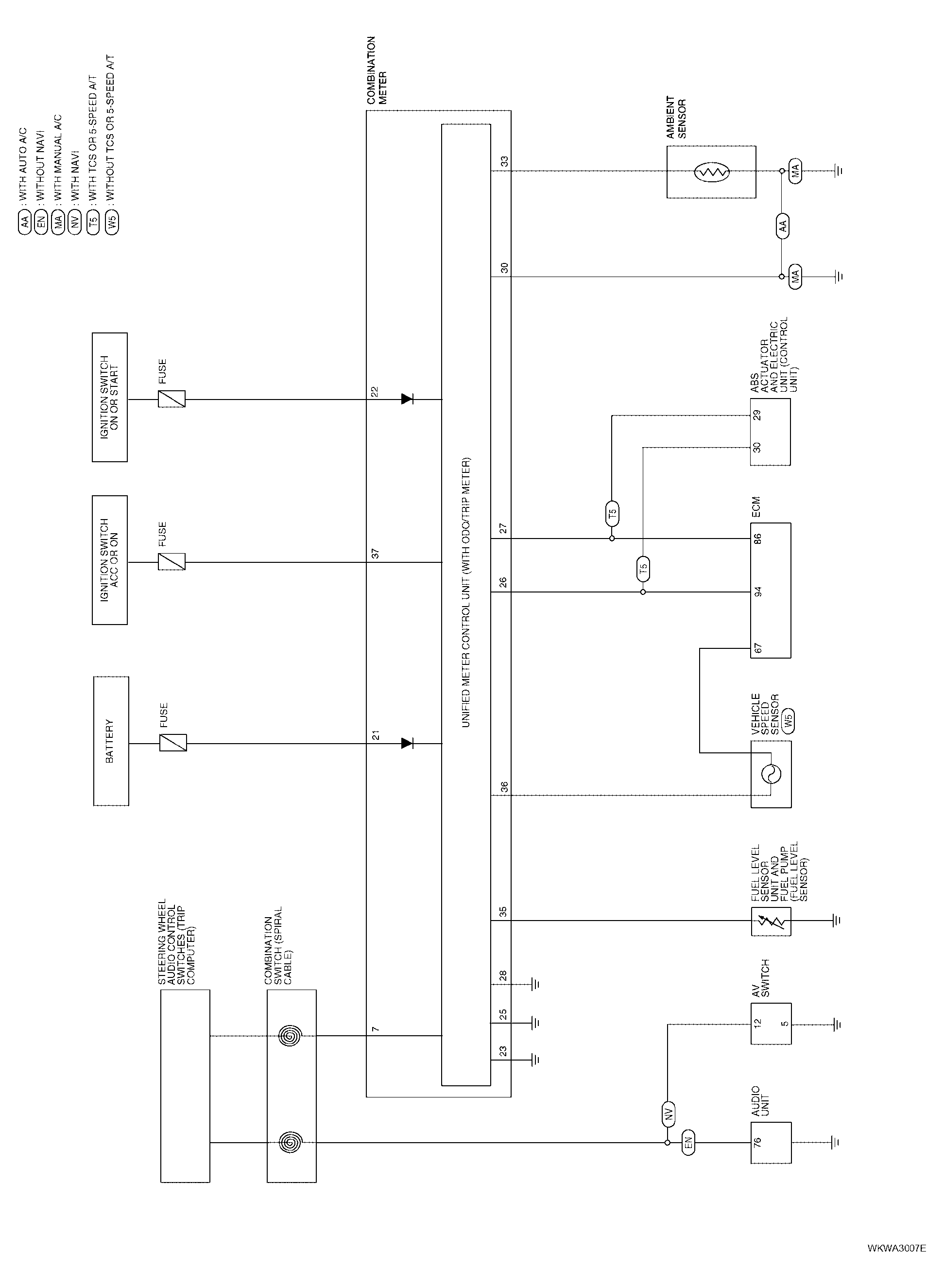

Fig 1: Board Computer Schematic Diagram
G04171179Courtesy of NISSAN MOTOR CO., U.S.A.
