Trouble Diagnosis
›
Preliminary Check
Preliminary Check

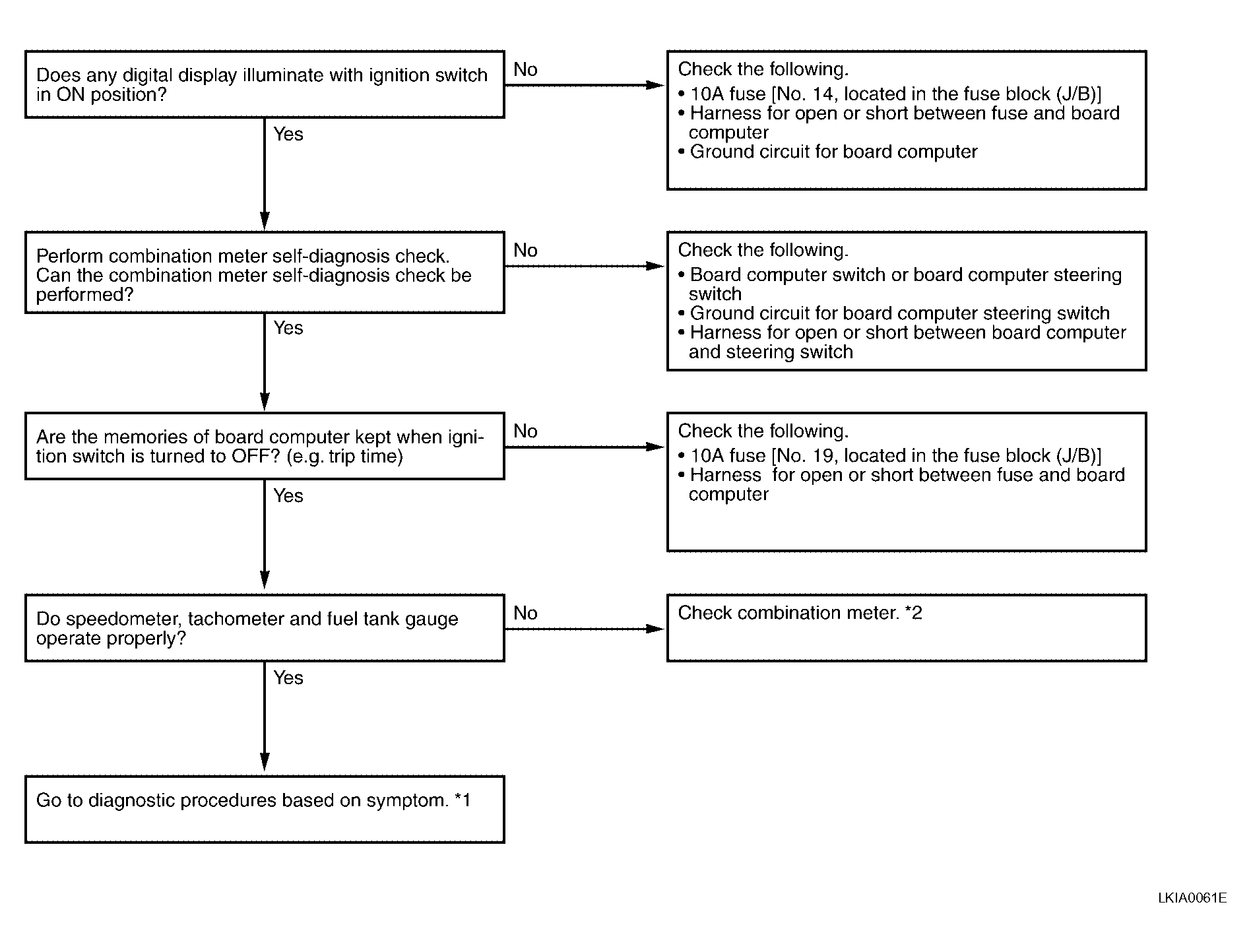

Fig 1: Preliminary Check Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
