FixVault
Home
›
Nissan-Datsun
›
2006
›
Altima SE-R, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Starting & Charging System
›
Generator
›
Trouble Diagnoses with Battery/Starting/Charging System Tester
›
Work Flow
Work Flow

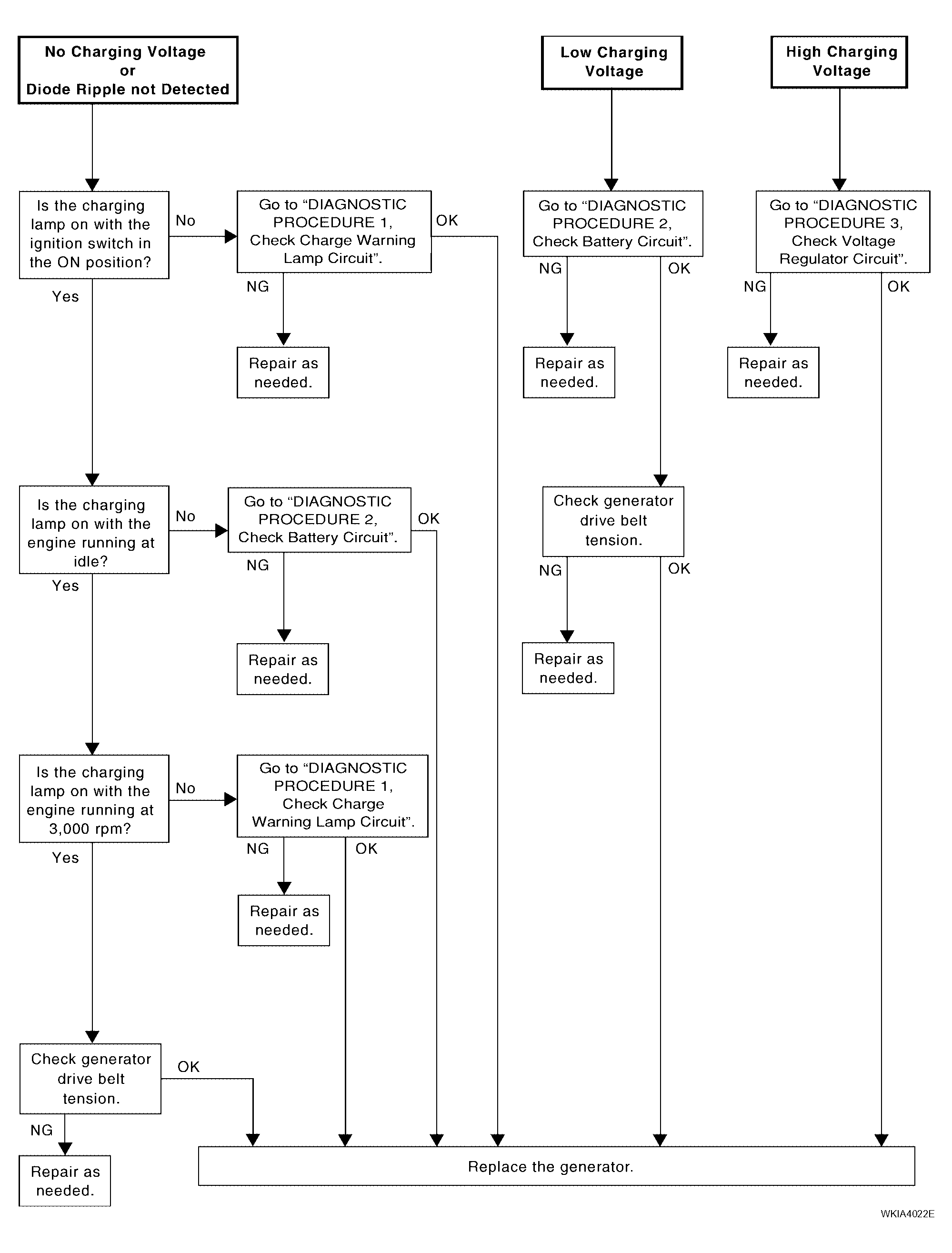

Fig 1: Diagnostic Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
