Removal and Installation: Notes

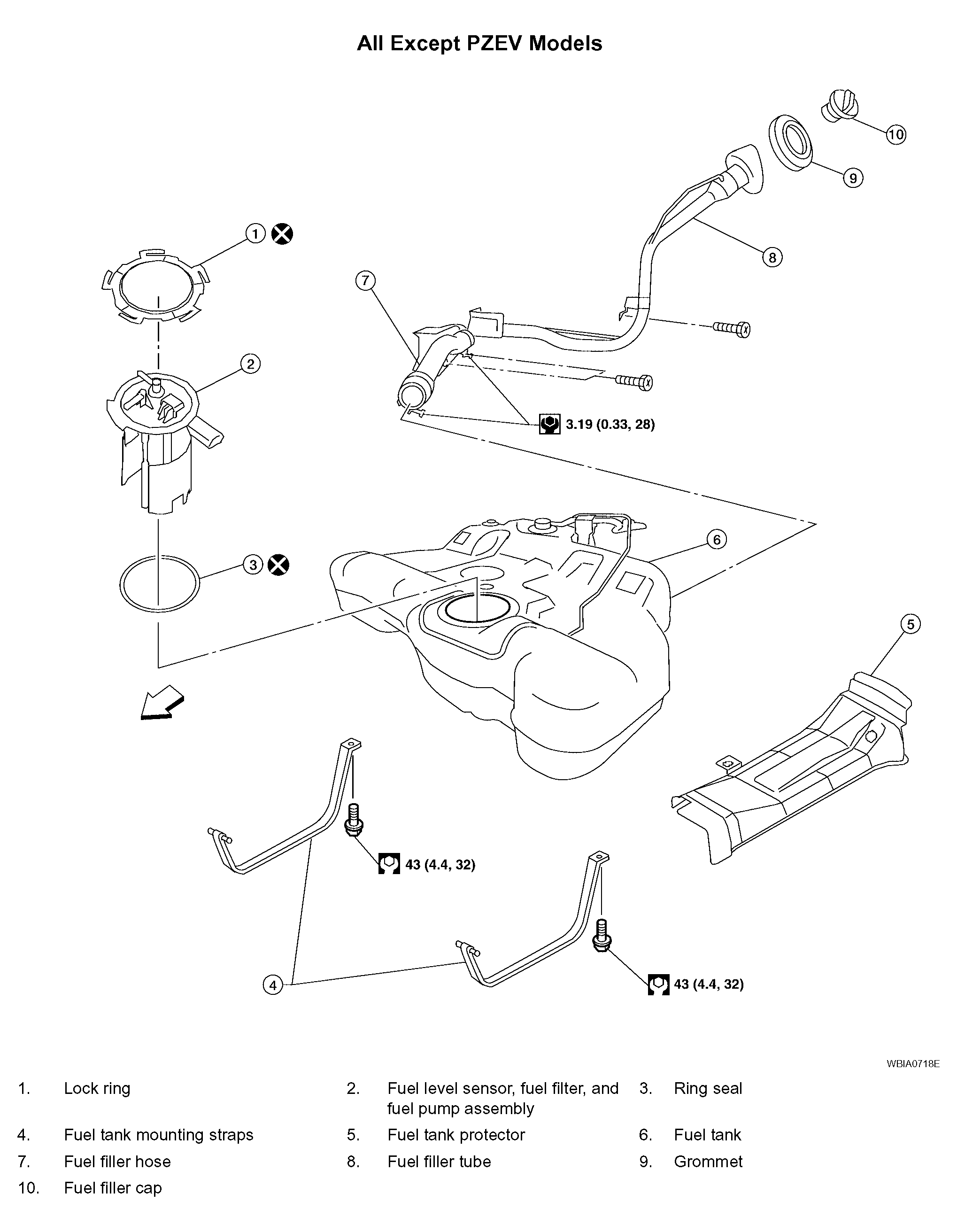

Fig 1: Removing And Installing Fuel Tank (All Except PZEV Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

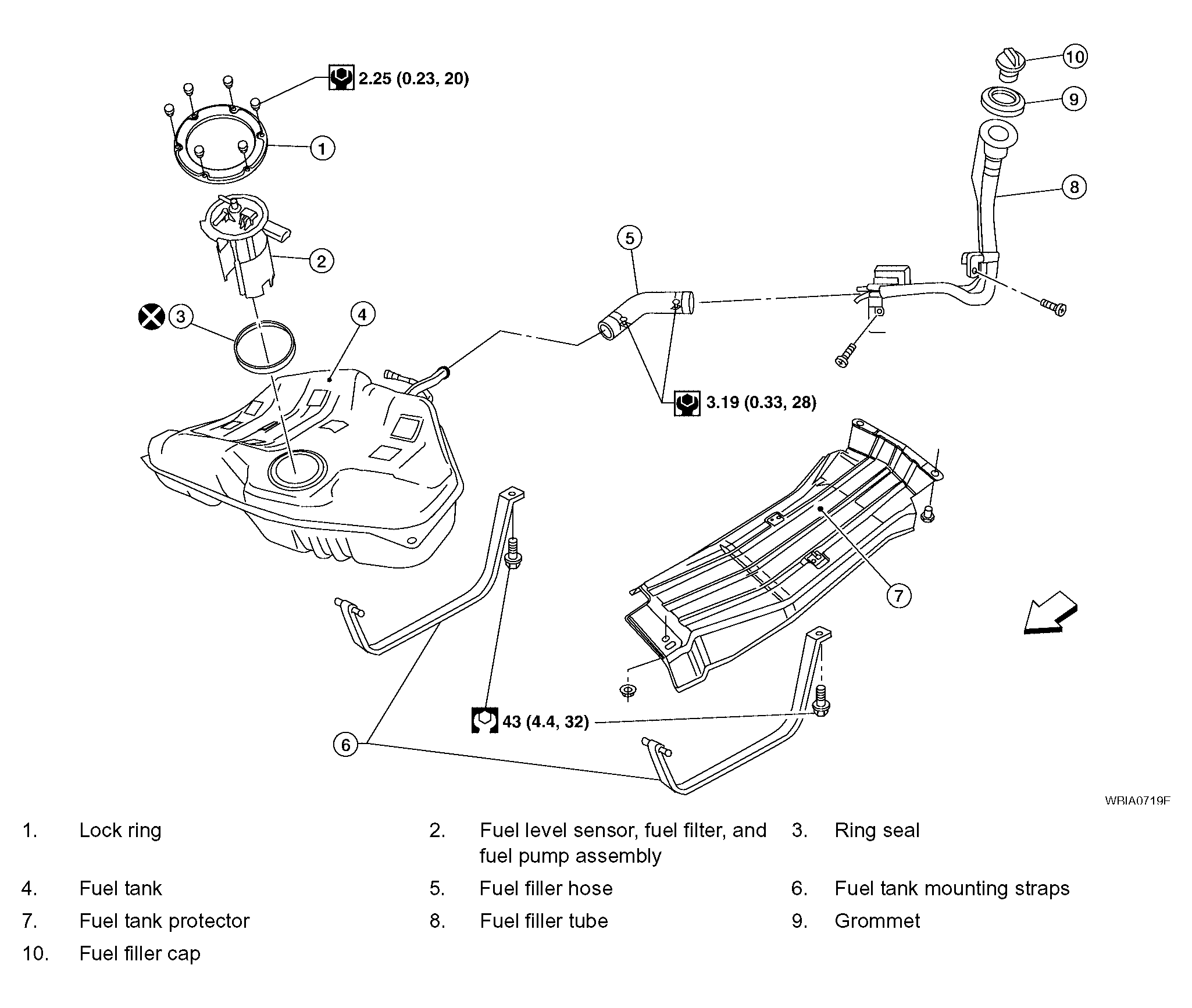

Fig 2: Removing And Installing Fuel Tank (PZEV Models Only)

Courtesy of NISSAN MOTOR CO., U.S.A.
