Method A

Slide the harness protector of ignition coil No. 1 (2) to clear the wires.
- <==: Vehicle front
- Intake manifold collector (1)
Attach timing light to the ignition coil No. 1 wires as shown in the figure.

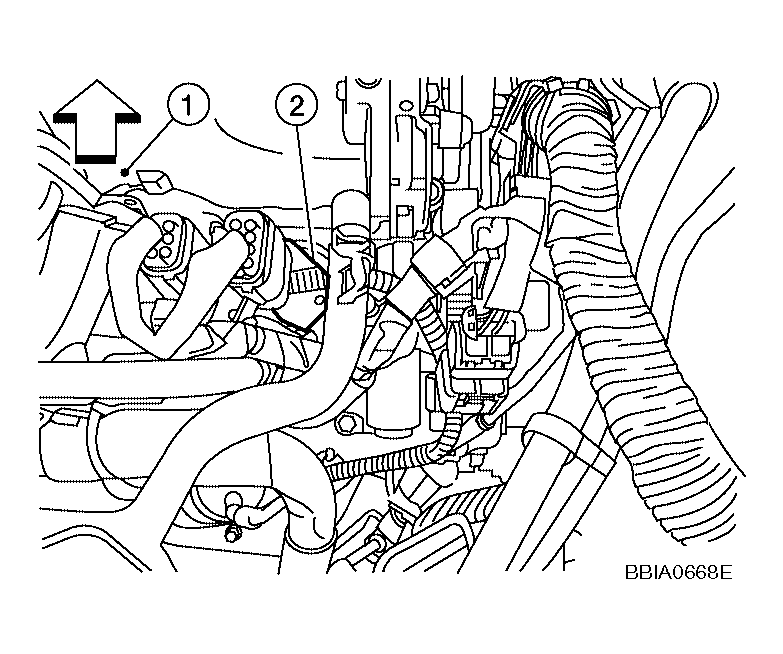

Fig 1: Identifying Intake Manifold Collector & Ignition Coil No. 1
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.

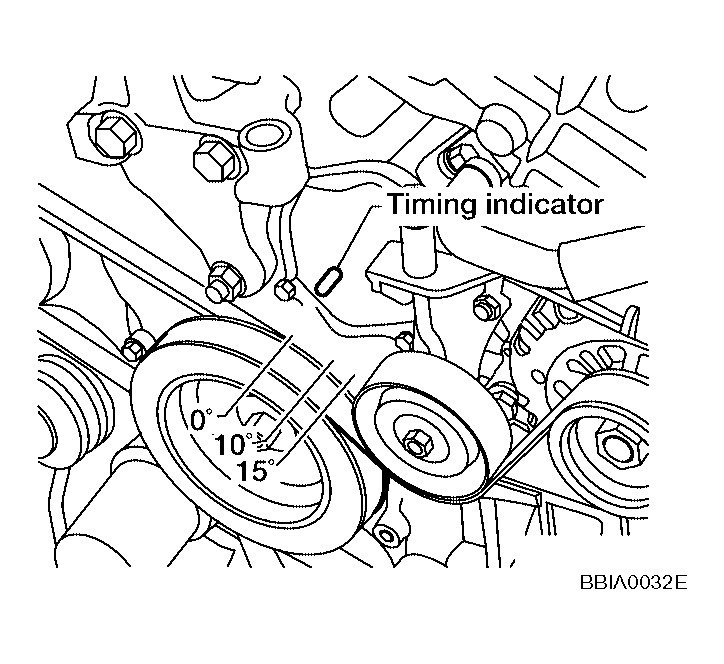

Fig 2: Checking Ignition Timing
Courtesy of NISSAN MOTOR CO., U.S.A.
