Engine Control System - Introduction (VQ35DE)
›
Engine Control System
›
System Diagram
System Diagram

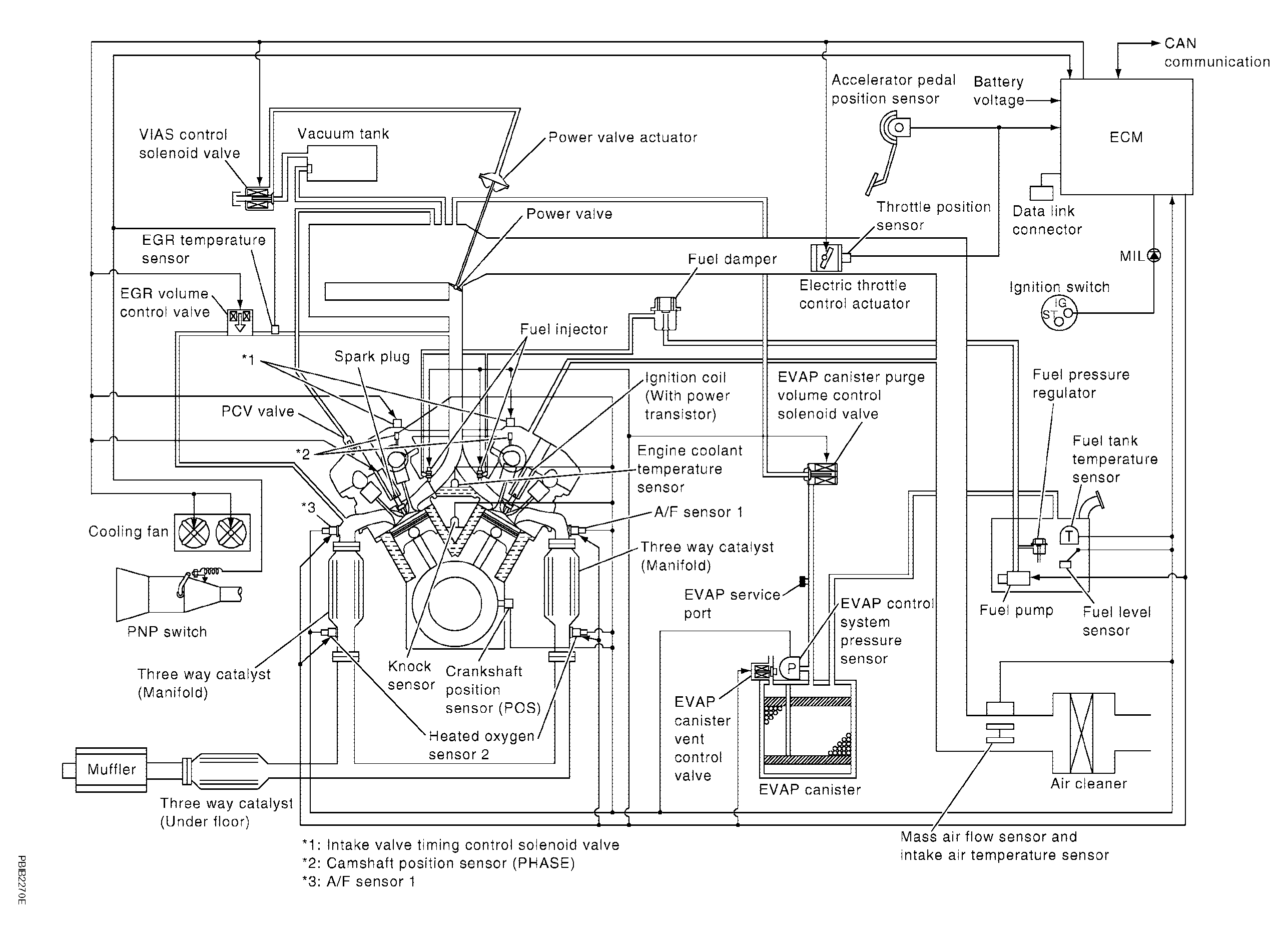

Fig 1: Engine Control System - Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
