How To Use Check Sheet Table

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

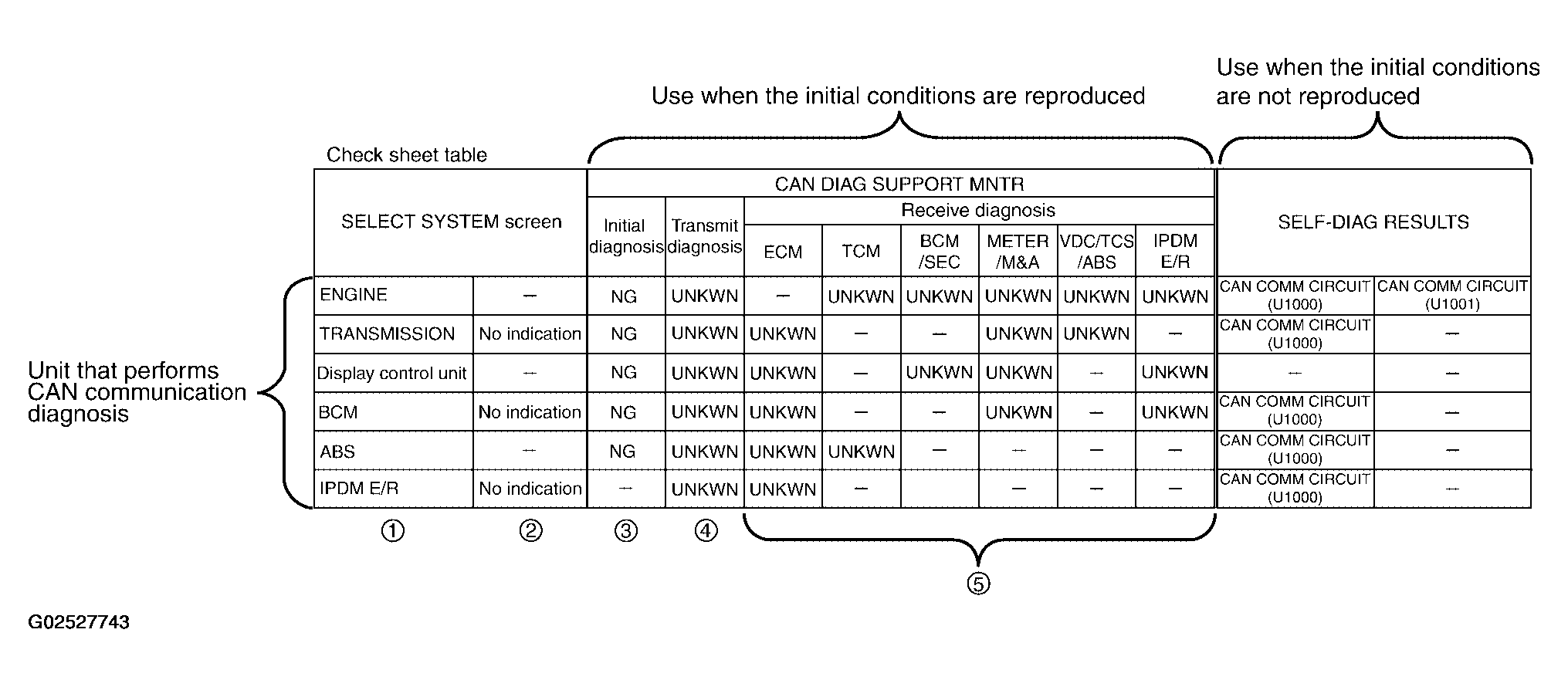

Fig 1: Check Sheet Table Use

Courtesy of NISSAN MOTOR CO., U.S.A.

Unit names displayed on CONSULT-II
"No indication": Put a check mark to it if the unit name described in step 1 is not displayed on "SELECT SYSTEM" screen of CONSULT-II. (Unit communicating with CONSULT-II via CAN communication line) "-": Column not used (Unit communicating with CONSULT-II excluding CAN communication line)
"NG": Display "NG" when malfunction is detected in the initial diagnosis of the diagnosed unit. Replace the unit if "NG" is displayed. "-": Column not used (Initial diagnosis is not performed.)
"UNKWN": Display "UNKWN" when the diagnosed unit does not transmit the data normally. Put a check mark to it if "UNKWN" is displayed on CONSULT-II.
"UNKWN": Display "UNKWN" when the diagnosed unit does not transmit the data normally. Put a check mark to it if "UNKWN" is displayed on CONSULT-II. "-": Column not used (It is not necessary for CAN communication trouble diagnosis.)

NOTE: CAN communication diagnosis checks if CAN communication works normally. (Contents of data are not diagnosed.)

Refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE REPRODUCED " when the initial conditions are reproduced.
Refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE NOT REPRODUCED " when the initial conditions are not reproduced.
