Removal and Installation of BCM: Removal

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring brand-new BCM after installation. Refer to "CONFIGURATION ".
  1. Disconnect negative battery cable.
  2. Remove driver lower instrument panel. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove screws (2) and release BCM from steering member.
  4. Disconnect connectors and then remove BCM.

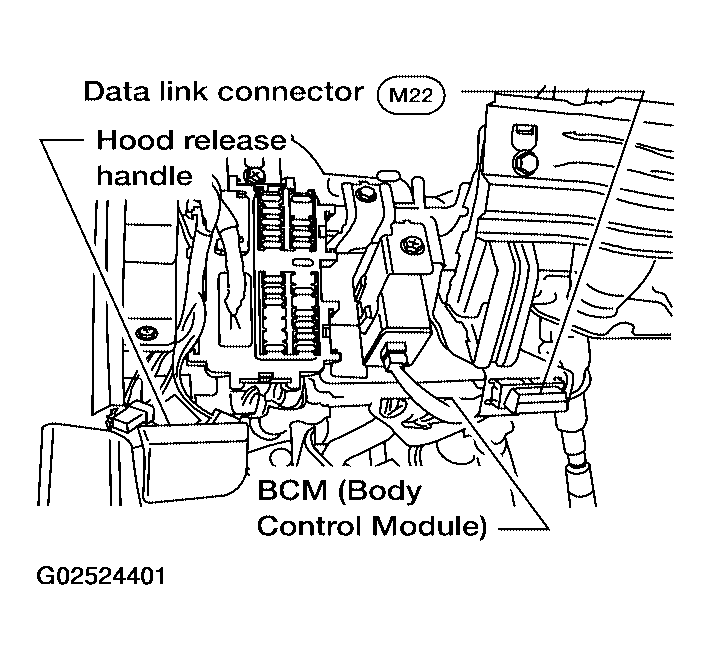

    Fig 1: Releasing BCM From Steering Member
    G02524401Courtesy of NISSAN MOTOR CO., U.S.A.
