Back-Up Lamp Switch

WARNING: This page is about a different variant/trim than selected.

Check continuity.

BACK-UP LAMP SWITCH

Gear position	Continuity
Reverse	Yes
Except reverse	No

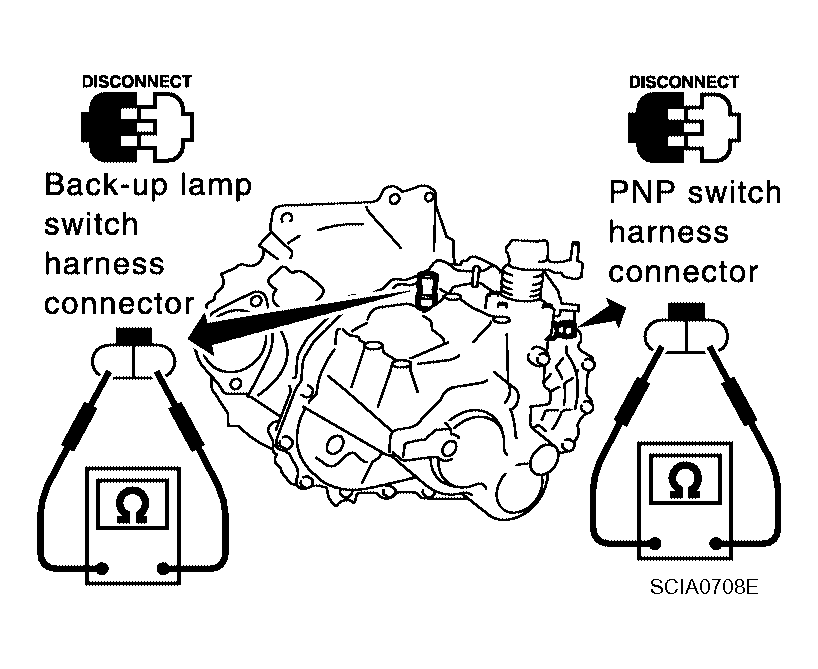

Fig 1: Identifying Back-Up Lamp Switch And PNP Switch Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.
