Disassembly and Assembly: Assembly

  1. Install the inner tie-rods.
  2. Install the outer tie-rods to the specified length and tighten the outer tie-rod lock nut to specification.

    Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to , "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

    Fig 1: Installing Outer Tie-Rods
    G04169915Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Measure rack stroke. Refer to , "STEERING GEAR AND LINKAGE ".
    Fig 2: Measuring Rack Stroke
    G04169916Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Before installing boot, coat the contact surfaces between boot and tie-rod with grease.
    Fig 3: Coating Contact Surfaces Between Boot And Tie-Rod With Grease
    G04169917Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install the boot clamps and crimp securely.

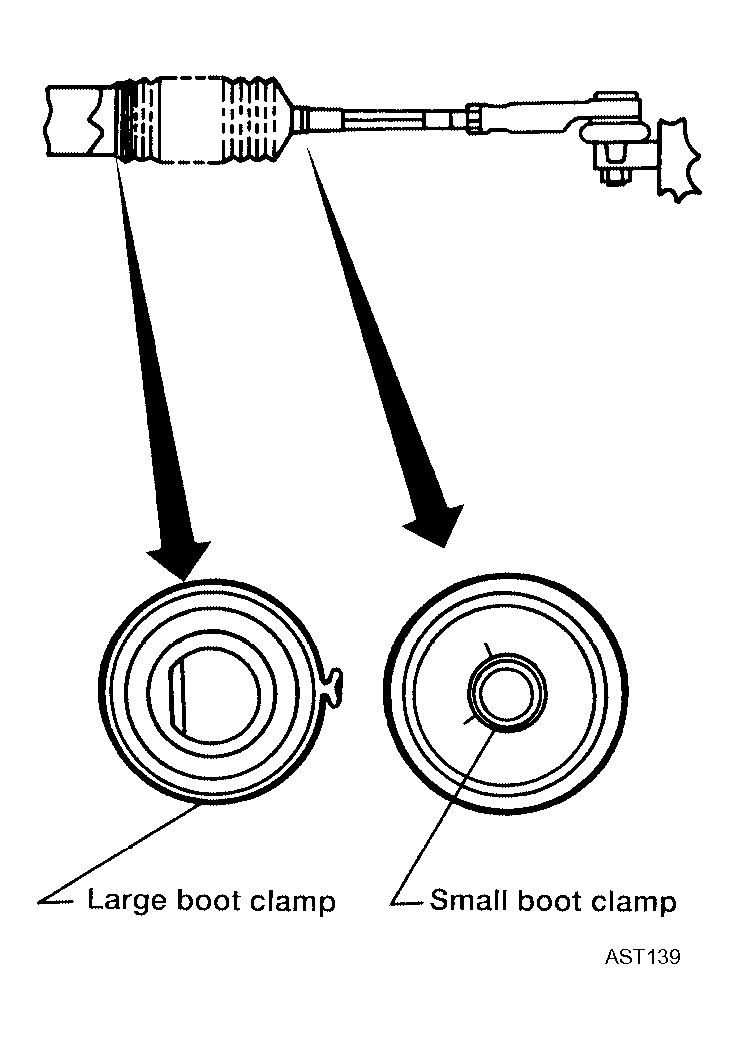

    Fig 4: Installing Boot Clamps And Crimp
    G04169918Courtesy of NISSAN MOTOR CO., U.S.A.
