Disassembly and Assembly: Notes

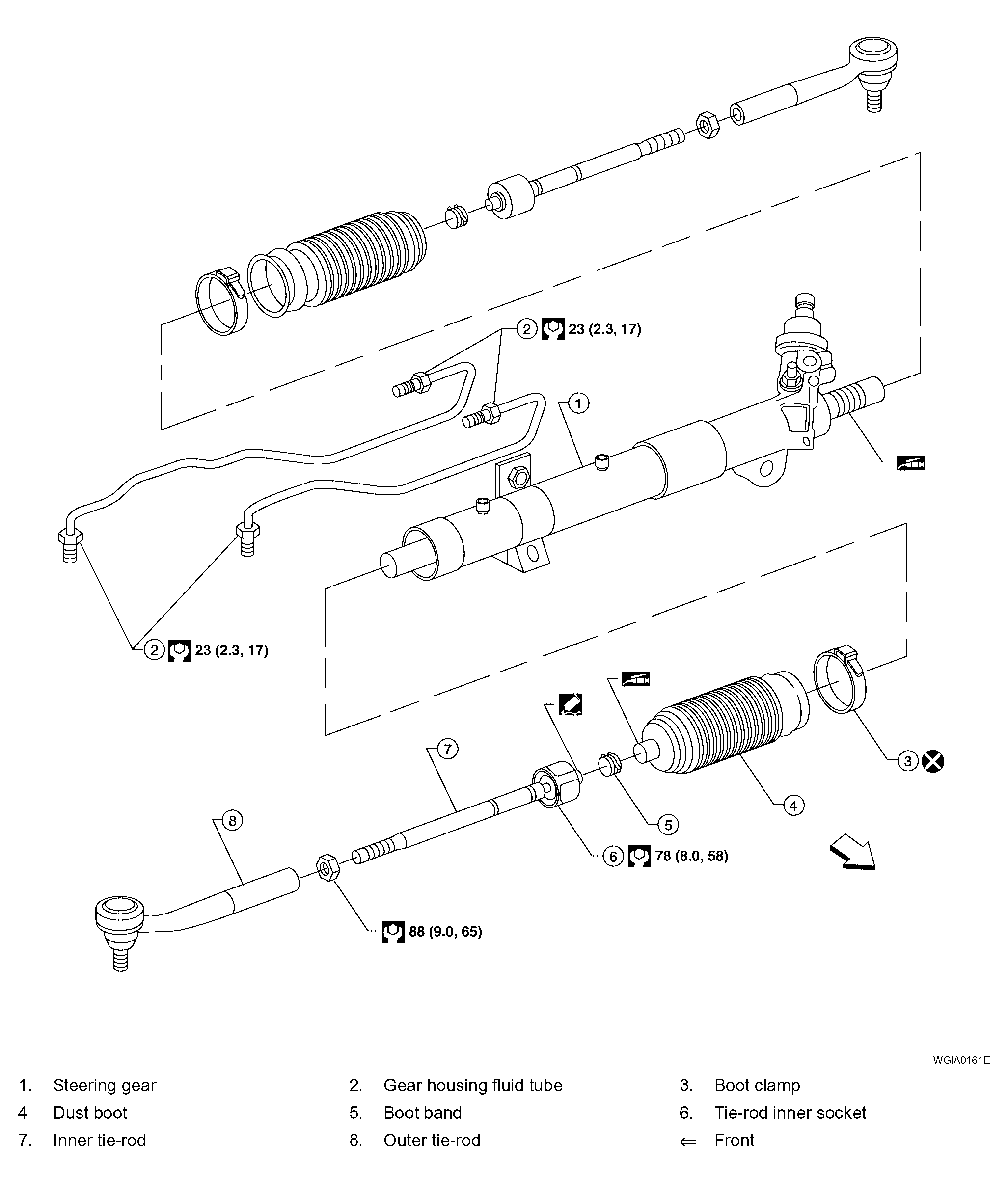

Fig 1: Disassembling And Assembly Of Power Steering Gear And Linkage (With Specifications)
G04169913Courtesy of NISSAN MOTOR CO., U.S.A.
