Home › Nissan-Datsun › 2006 › Altima SE-R, Automatic › Repair and Diagnosis › Steering › Power Steering System › Power Steering Oil Pump › Disassembly and Assembly › Notes

Disassembly and Assembly: Notes

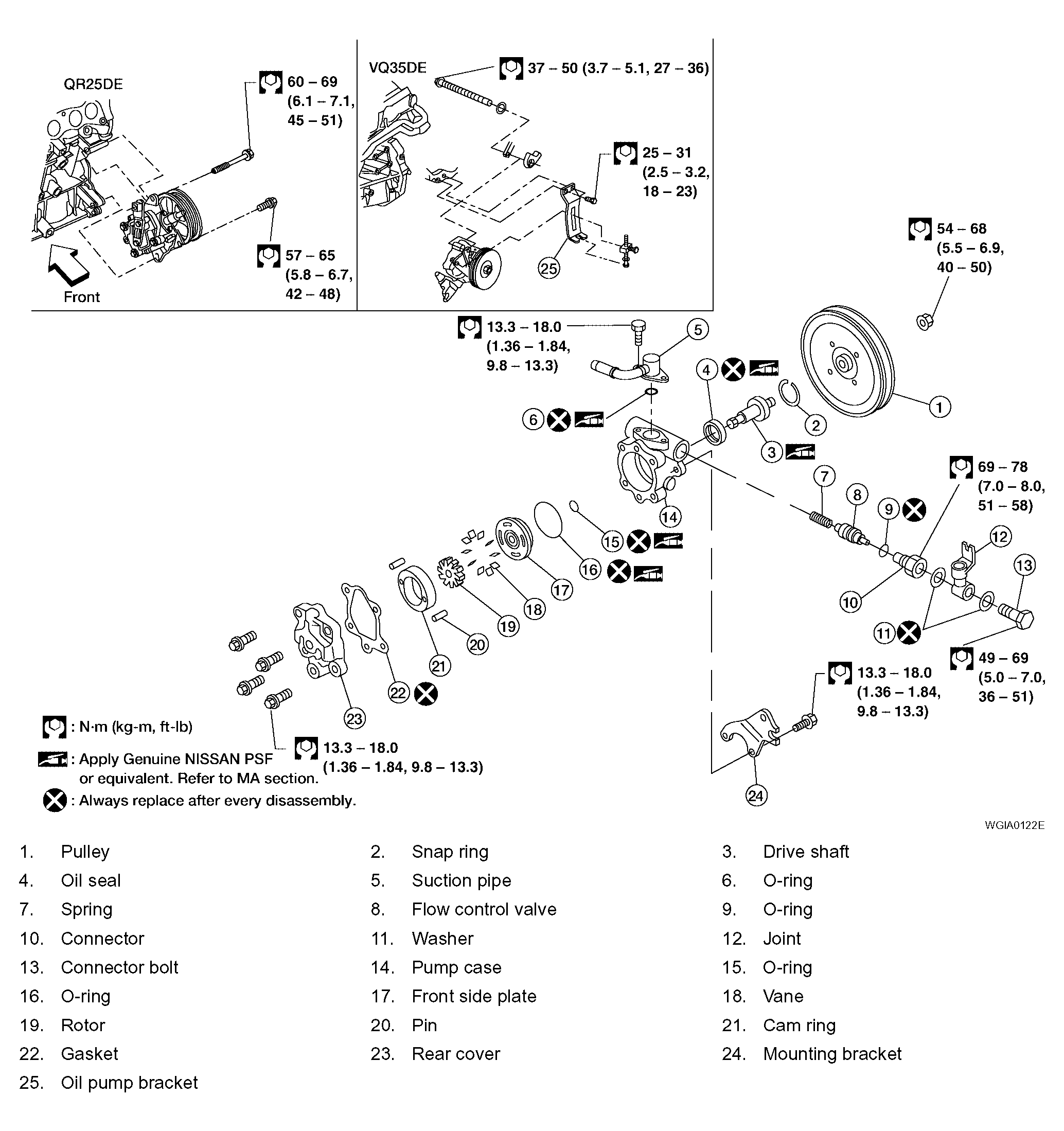

Fig 1: Disassembly And Assembly Of Power Steering Oil Pump (With Specifications)
G04169923Courtesy of NISSAN MOTOR CO., U.S.A.
