Rear Suspension Assembly: Components

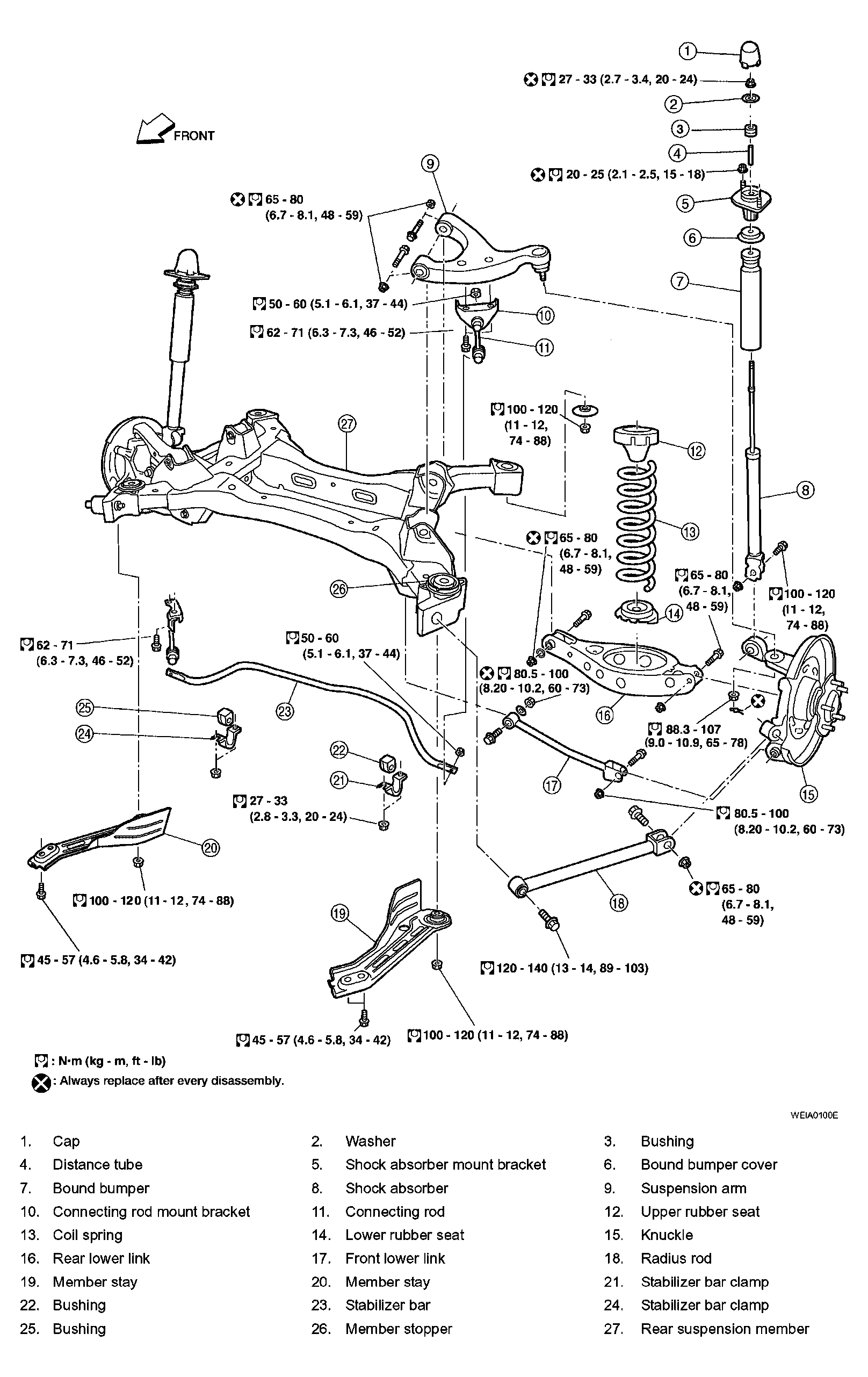

Fig 1: Exploded View Of Rear Suspension (With Specifications)
G04169634Courtesy of NISSAN MOTOR CO., U.S.A.
