BCM (Body Control Module): Schematic

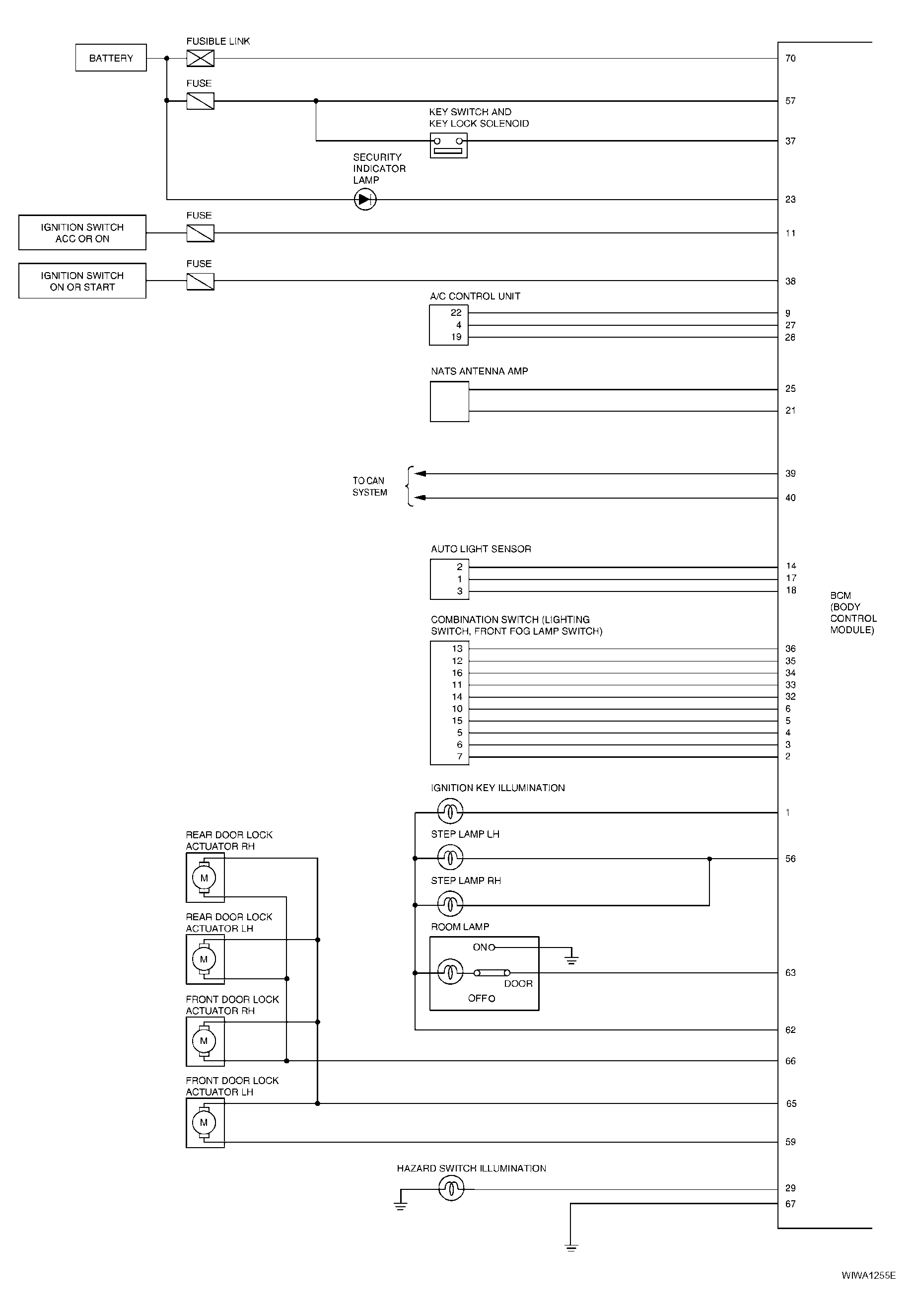

Fig 1: BCM (Body Control Module) - Schematic Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

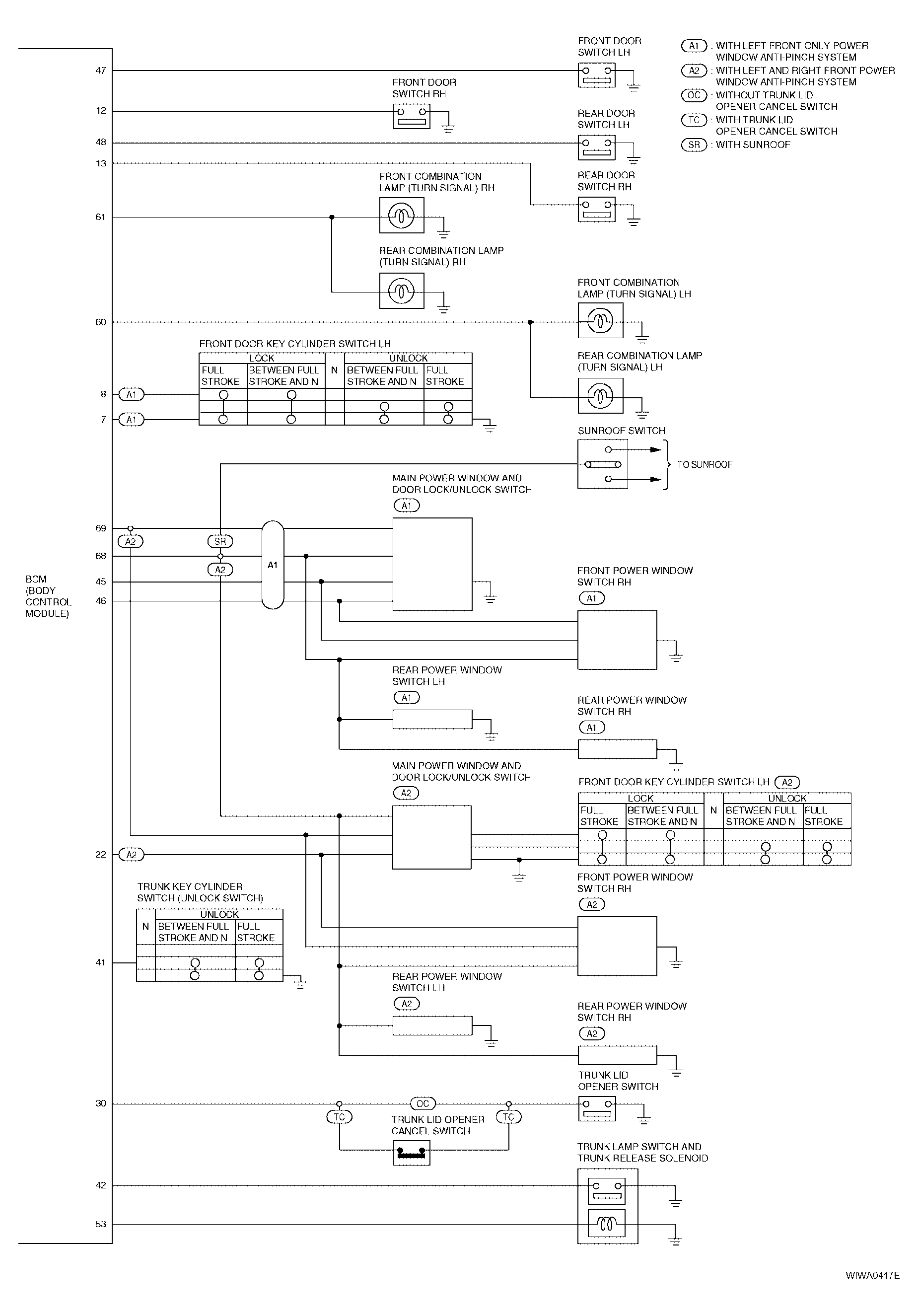

Fig 2: BCM (Body Control Module) - Schematic Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
