How To Use This Information: Components: Notes

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

THE LARGE ILLUSTRATIONS are exploded views (See Fig 1) and contain tightening torques, lubrication points and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.

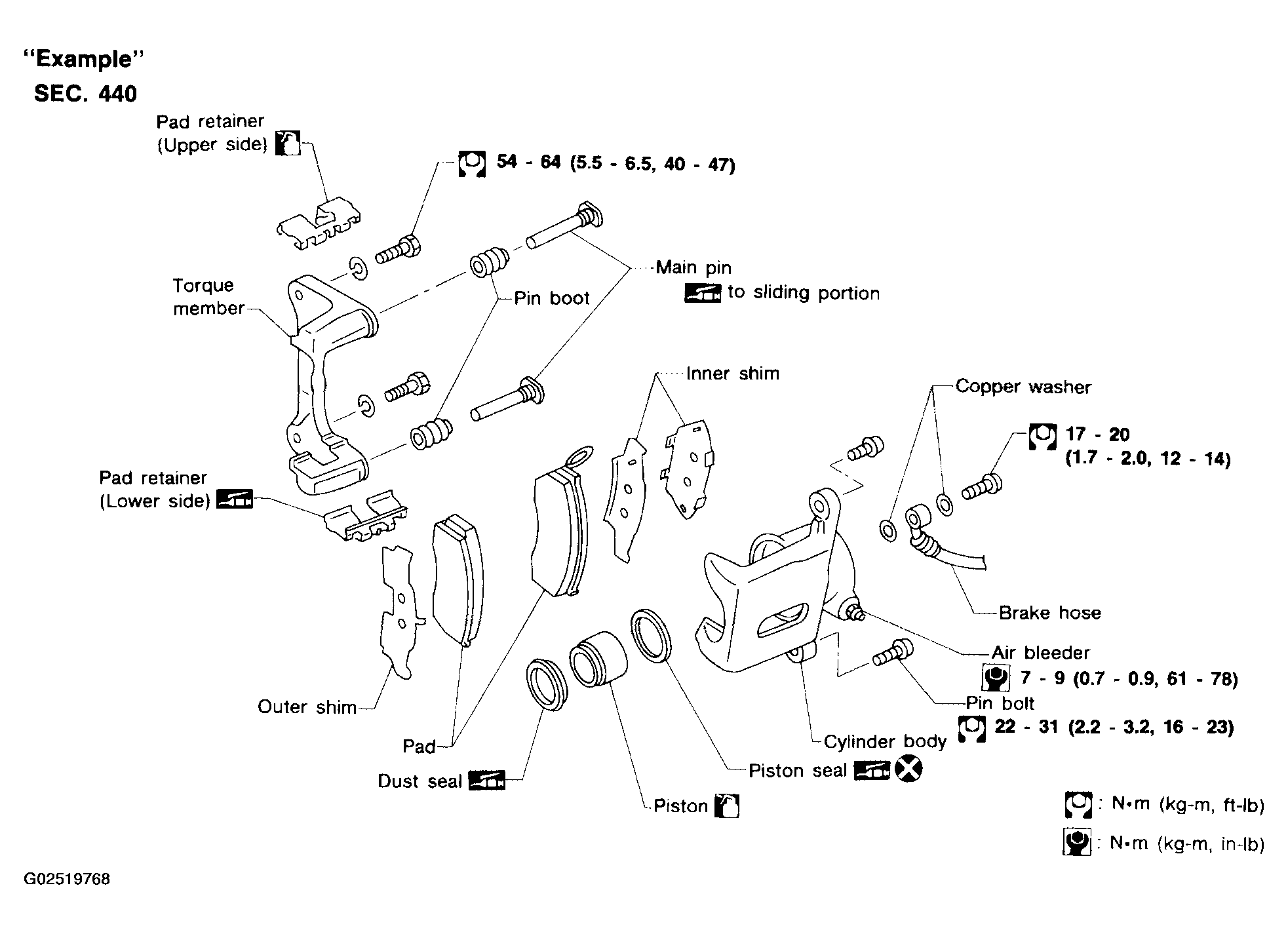

Fig 1: Exploded View Of Brake Components
Courtesy of NISSAN MOTOR CO., U.S.A.
