Front Disc Brake: Component

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

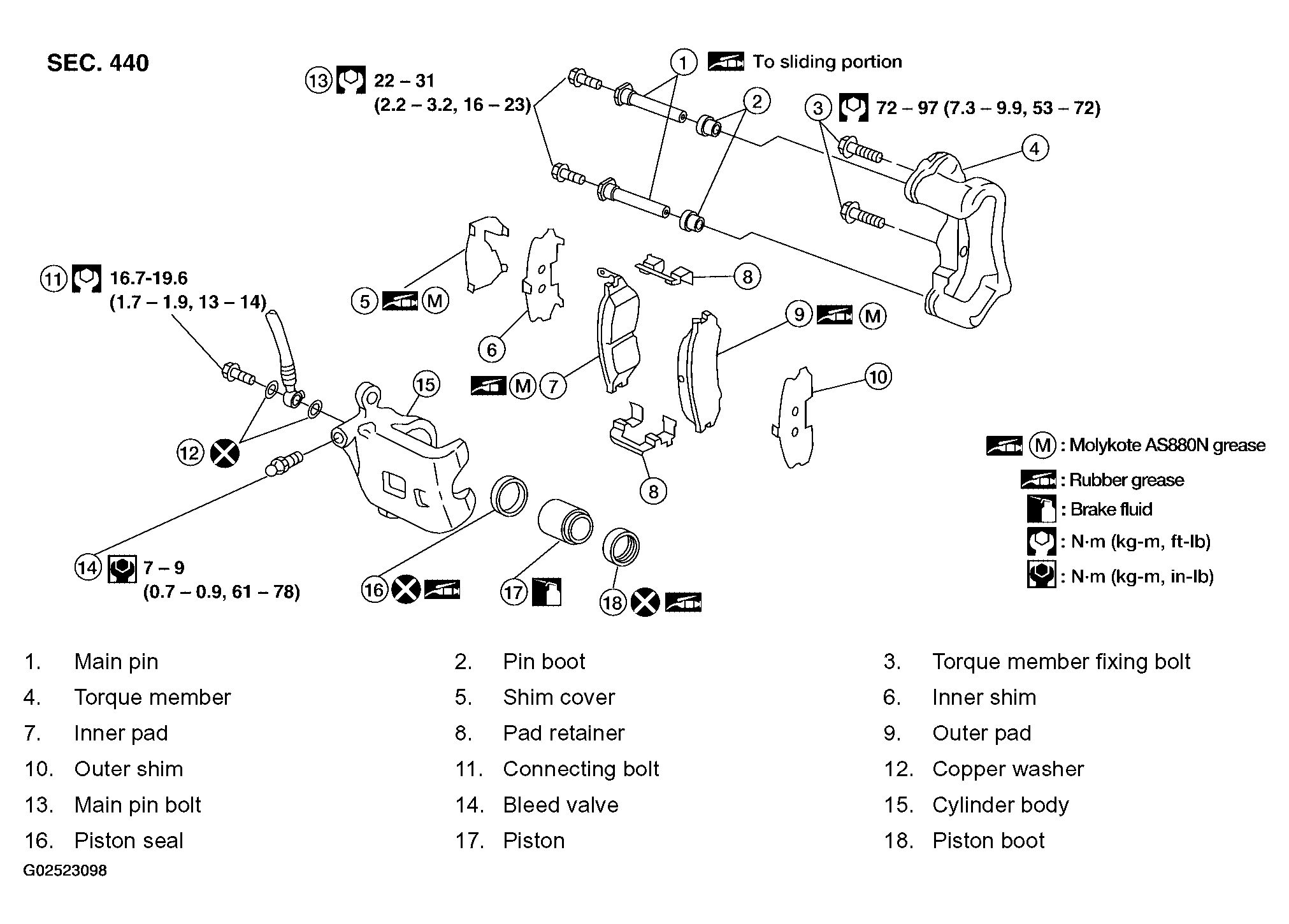

Fig 1: Front Disc Brake Component -- With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

WARNING: Clean brake pads with a vacuum dust collector to minimize the hazard of airborne particles or other materials.

CAUTION:

When cylinder body is open, do not depress the brake pedal because the piston will pop out.
It is not necessary to remove connecting bolt except for disassembly or replacement of cylinder body. In this case, suspend cylinder body with wire so as not to stretch brake hose.
Be careful not to damage piston boot or get oil on rotor. Always replace shims when replacing pads.
Burnish the brake contact surfaces after refinishing or replacing rotors, after replacing pads, or if a soft pedal occurs at very low mileage.
Refer to "BRAKE BURNISHING PROCEDURE ".
