Program Loading of NAVI Control Unit

WARNING: This page is about a different car, the 2005 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

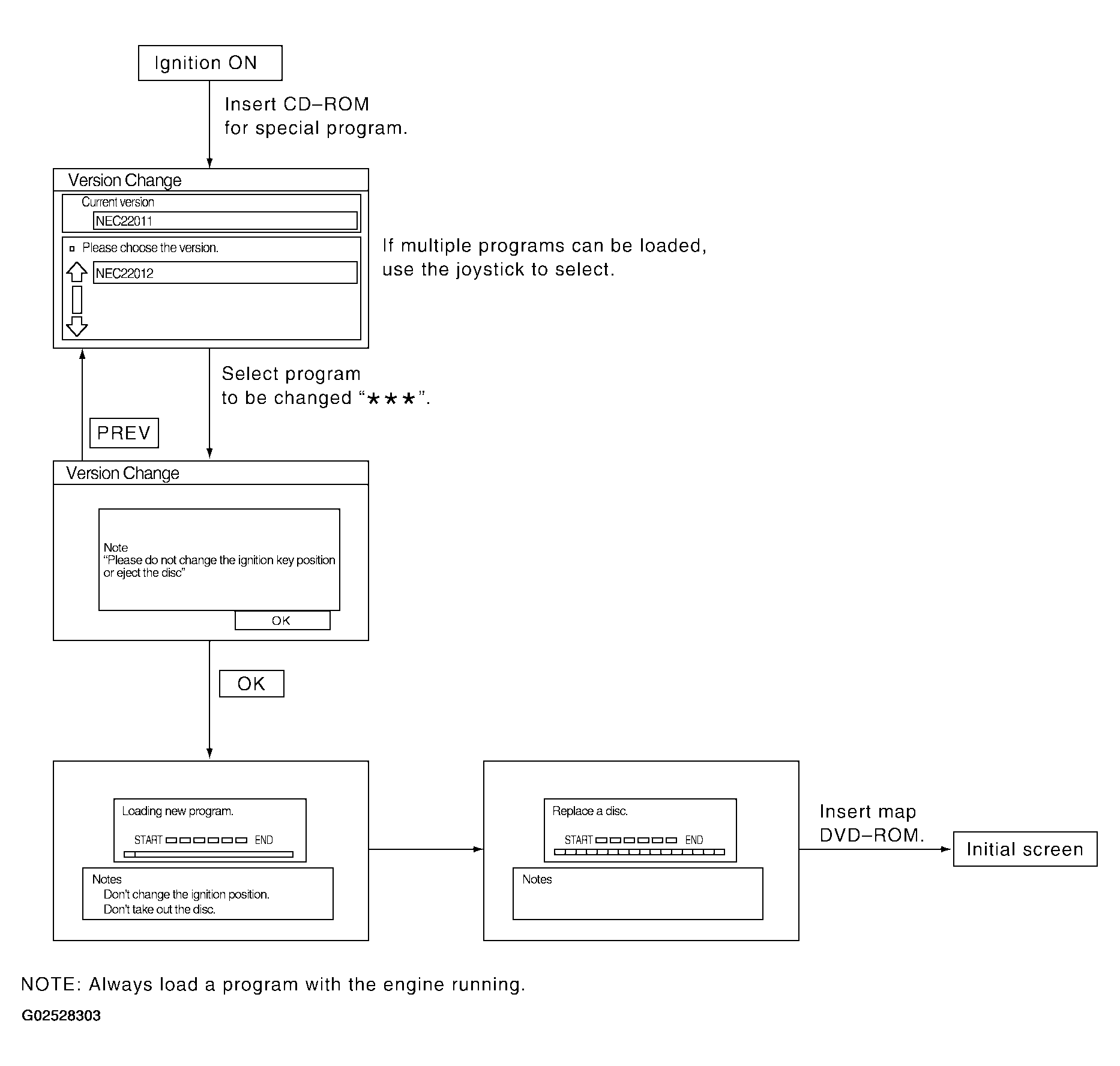

Fig 1: Program Loading Of Navi Control Unit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
