Clutch Pedal: Components

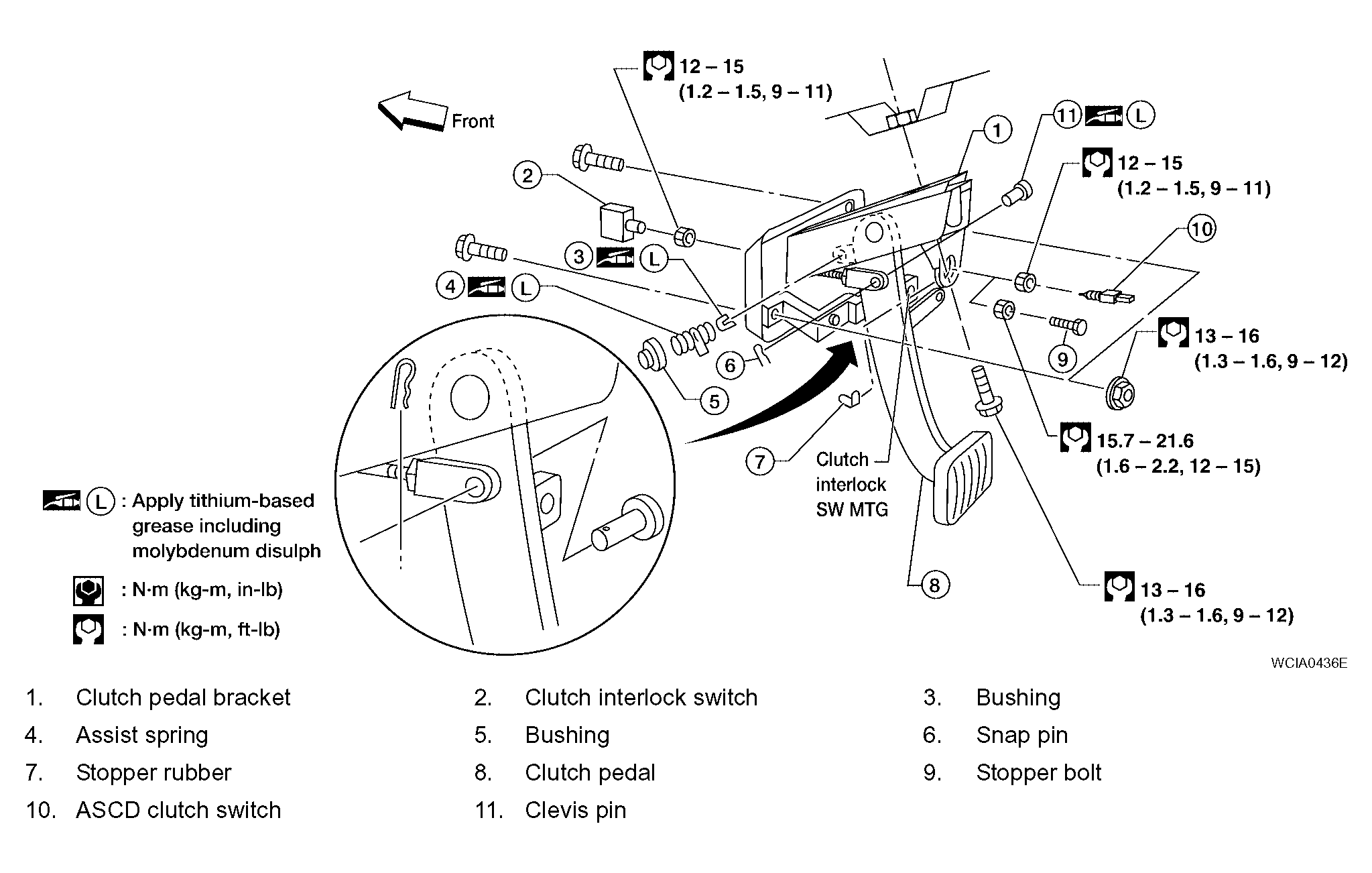

Fig 1: Removal And Installation Of Clutch Pedal (With Specifications)
G04167687Courtesy of NISSAN MOTOR CO., U.S.A.
