Home
›
Nissan-Datsun
›
2006
›
Armada LE, RWD
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Fuel Tank
›
Removal and Installation
›
Notes
Removal and Installation: Notes

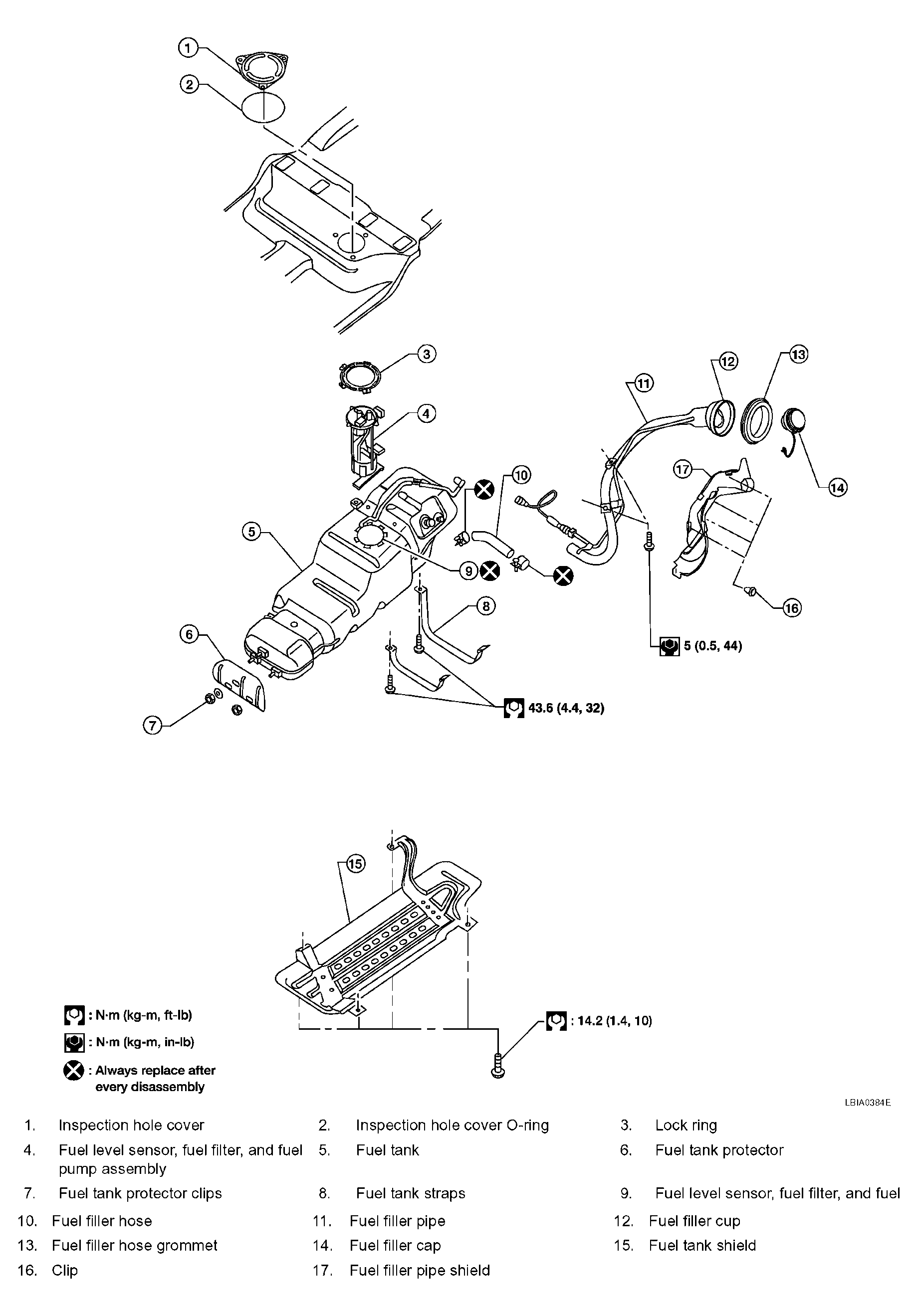

Fig 1: Removing Fuel Tank And Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
