Mil And Data Link Connector: Wiring Diagram

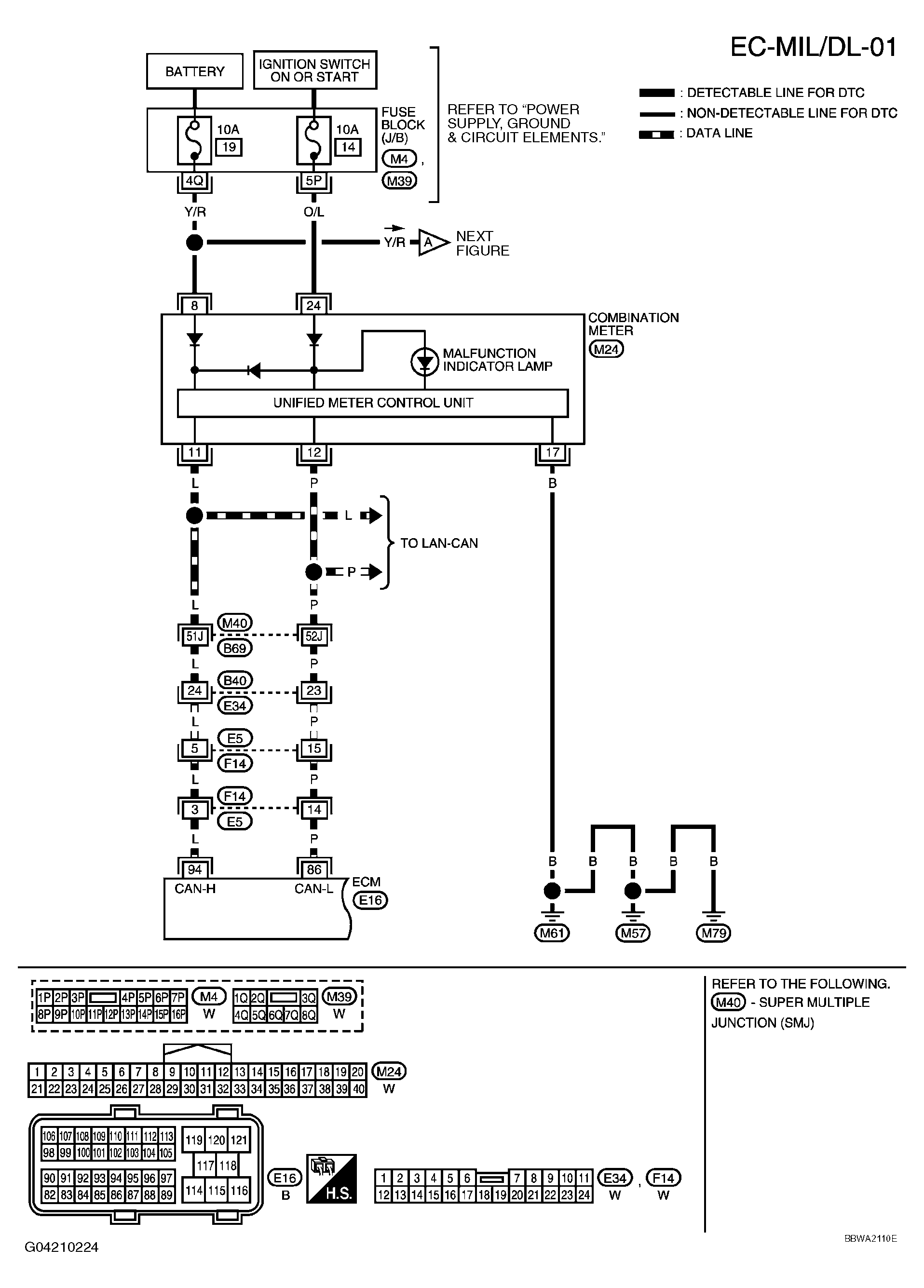

Fig 1: EC-MILDL-01 - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

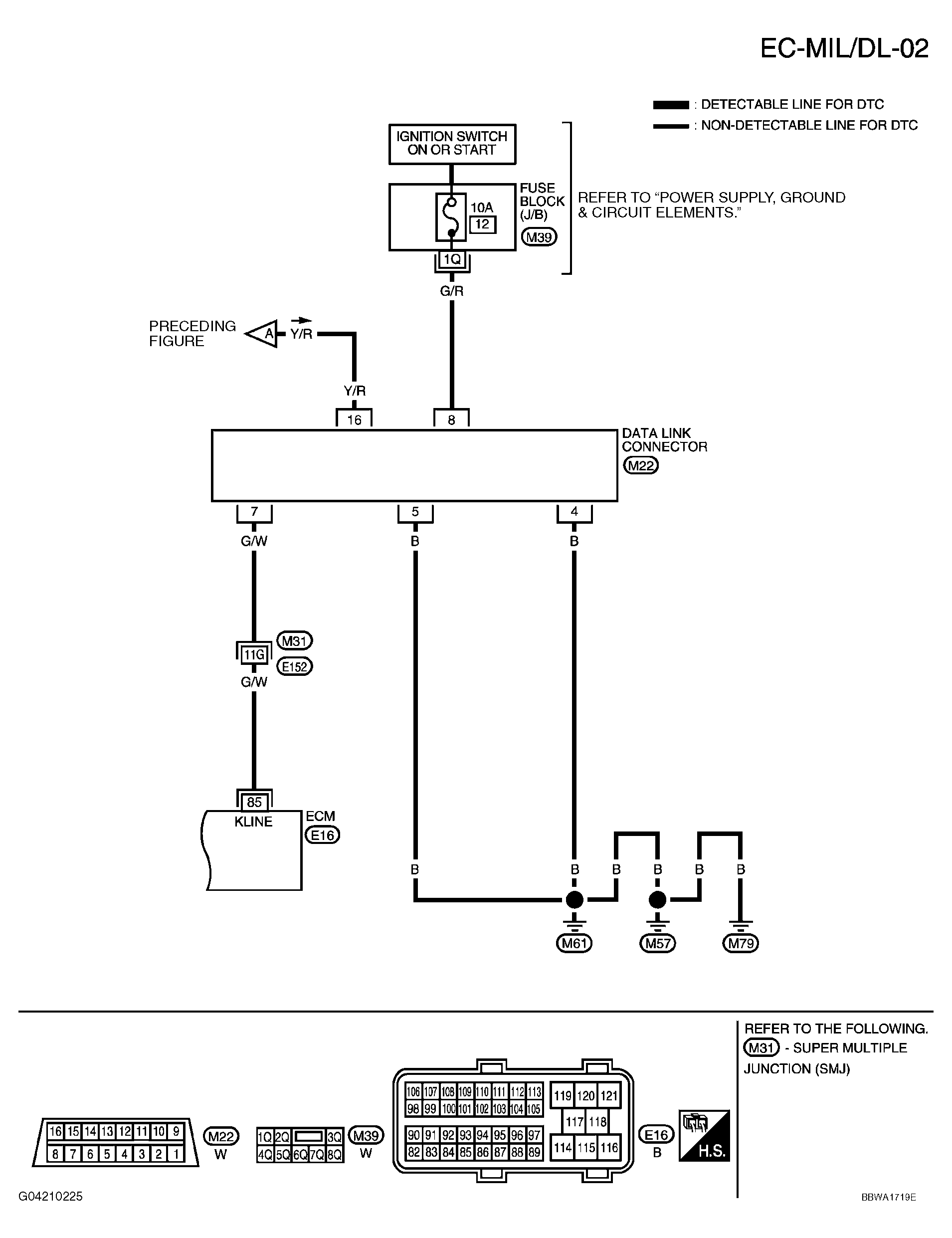

Fig 2: EC-MILDL-02 - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
