Engine Control System - Introduction
›
Trouble Diagnosis
›
Trouble Diagnosis Introduction
›
Work Flow
›
Overall Sequence
Overall Sequence

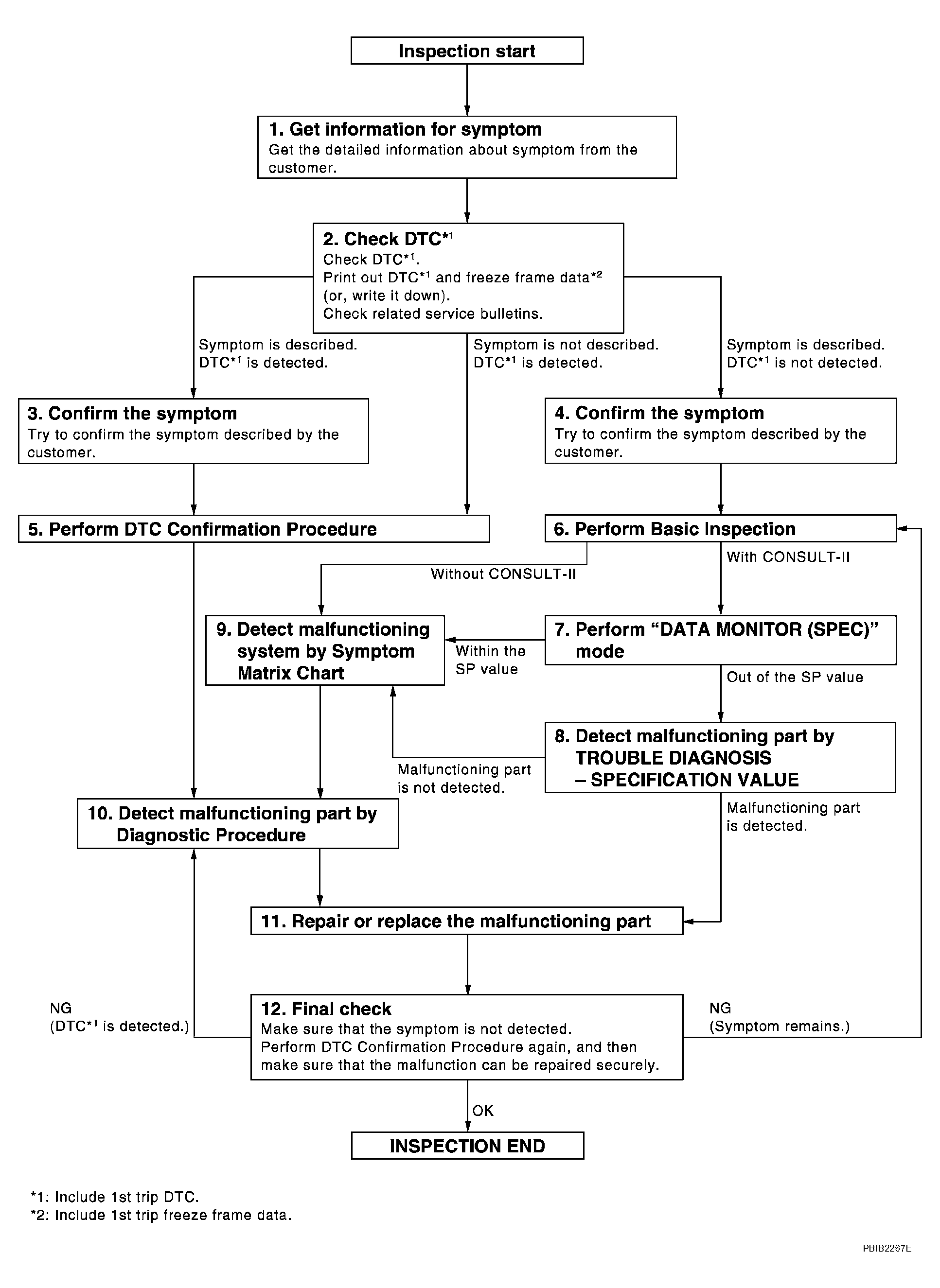

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
