Disassembly and Assembly: Components

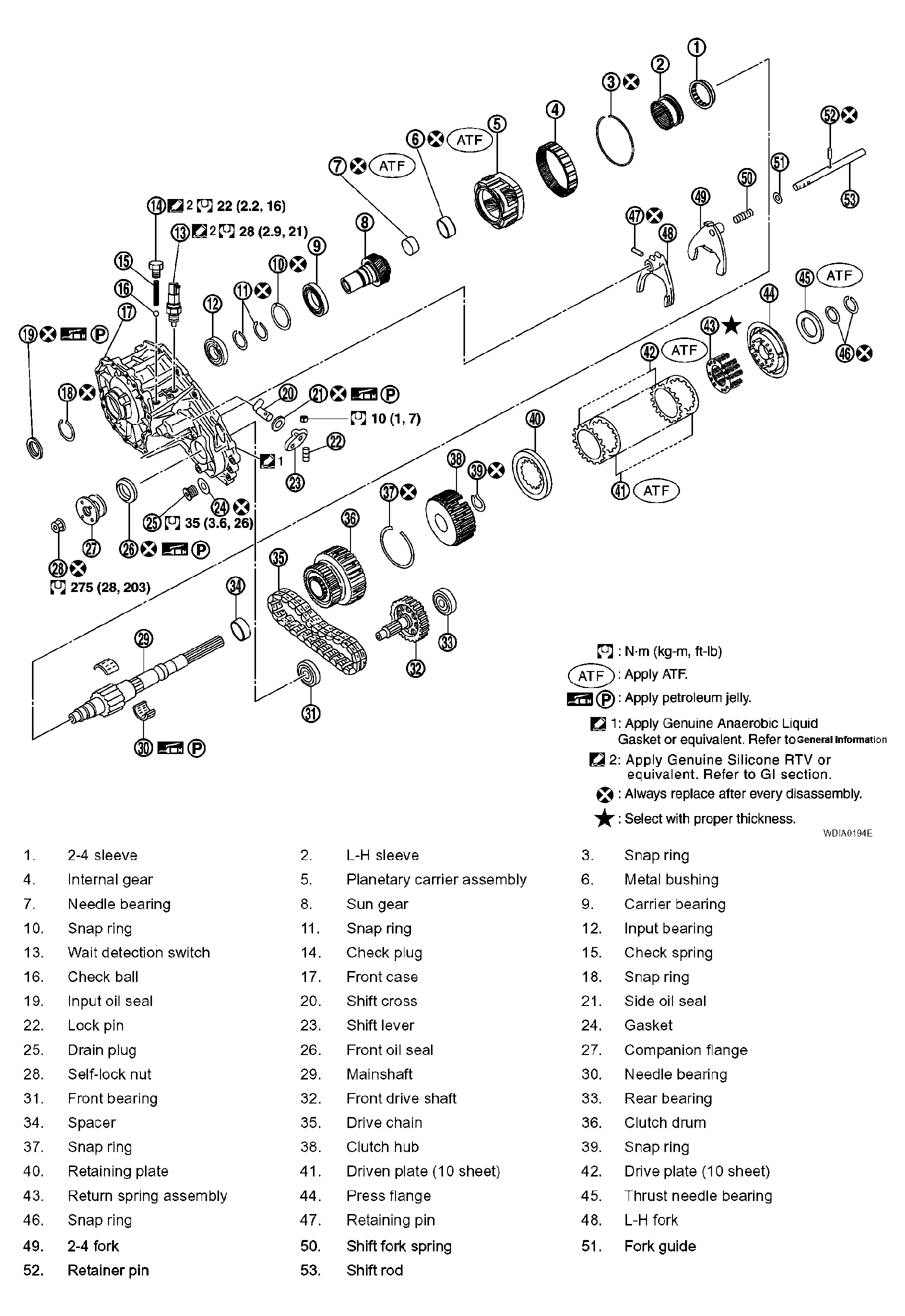

Fig 1: Identifying Transfer Assembly Component (1 Of 2)
G04211035Courtesy of NISSAN MOTOR CO., U.S.A.

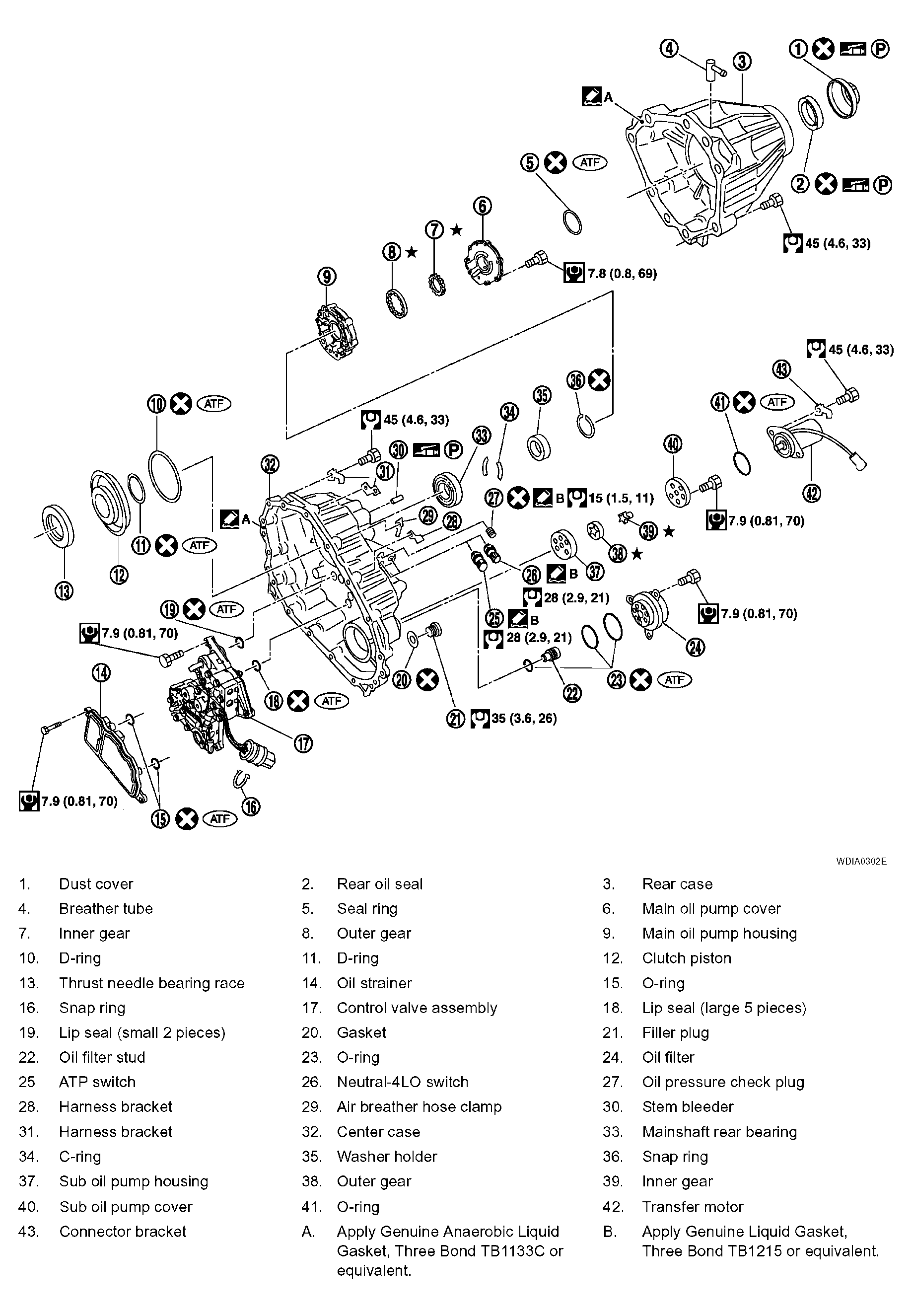

Fig 2: Identifying Transfer Assembly Component (2 Of 2)
G04211036Courtesy of NISSAN MOTOR CO., U.S.A.
