Rear Case

  1. Remove the rear case bolts.

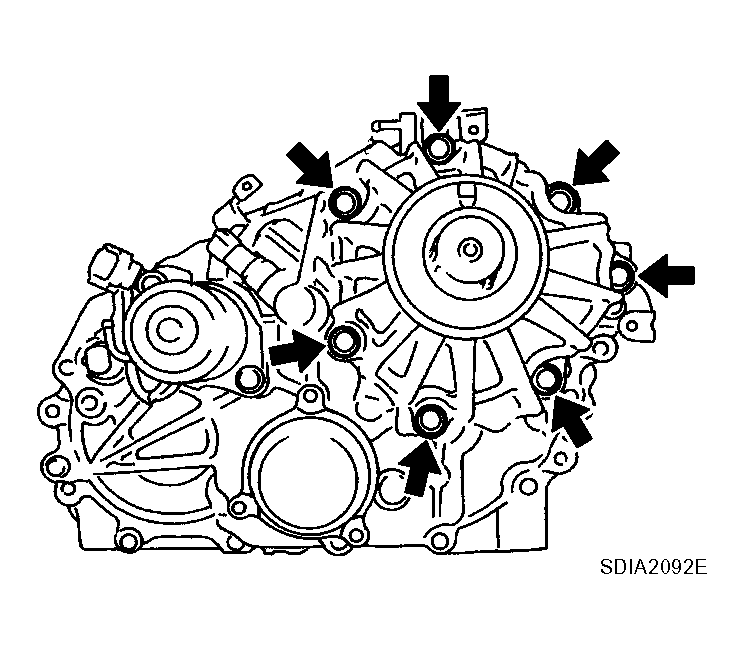

    Fig 1: Removing Rear Case Bolts
    G04211037Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the rear case from the center case.
    Fig 2: Removing Rear Case From Center Case
    G04211038Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the dust cover using suitable tool.
    Fig 3: Removing Dust Cover Using Suitable Tool
    G04211039Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the rear oil seal using suitable tool.
    CAUTION: Do not damage rear case.
  5. Remove the breather tube.
    Fig 4: Removing Rear Oil Seal Using Suitable Tool
    G04211040Courtesy of NISSAN MOTOR CO., U.S.A.
