Removal and Installation: Installation

Installation is in the reverse order of removal.

• Tighten the bolts to specification.

  Bolt length : 45 mm (1.77 in)

  Transfer bolt torque : 36 N.m (3.7 kg-m, 27 ft-lb)

• After installation check the transfer fluid level and for fluid leakage. Refer to "TRANSFER FLUID ".
• After filling, start the engine and let it run for one minute. Then stop the engine and recheck the transfer fluid.

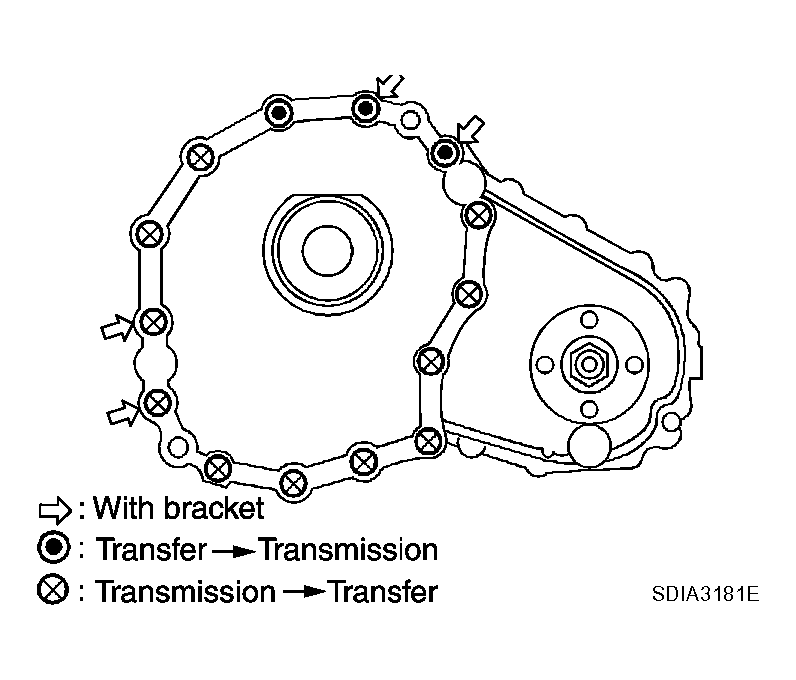

Fig 1: Removing Transfer Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.
