Method A

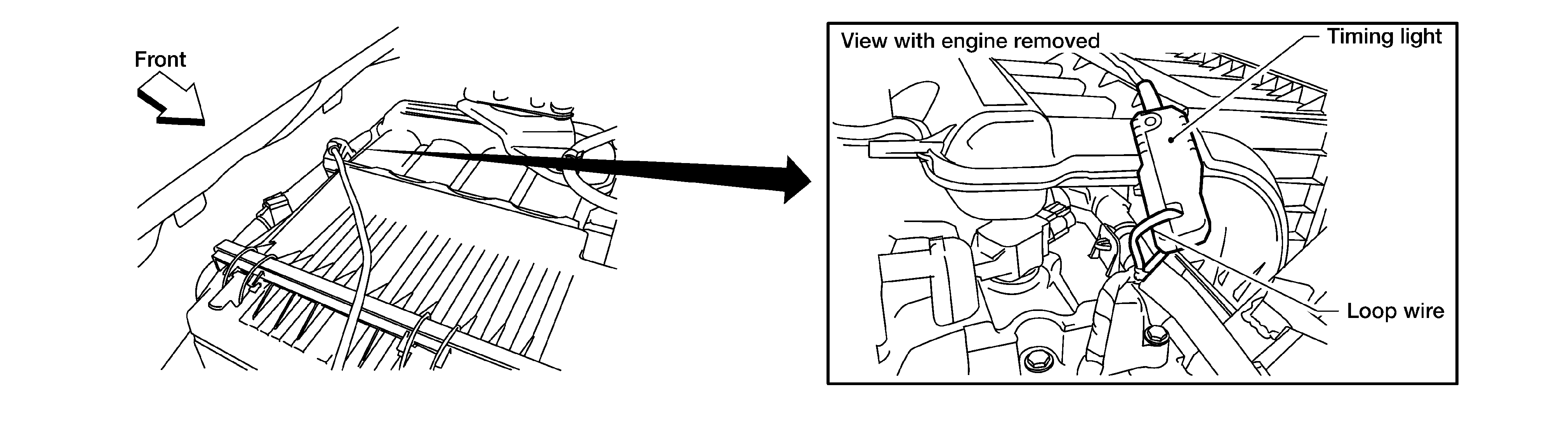

  1. Attach timing light to loop wire as shown.
    Fig 1: Identifying Timing Light To Loop Wire
    G04147070Courtesy of NISSAN MOTOR CO., U.S.A.

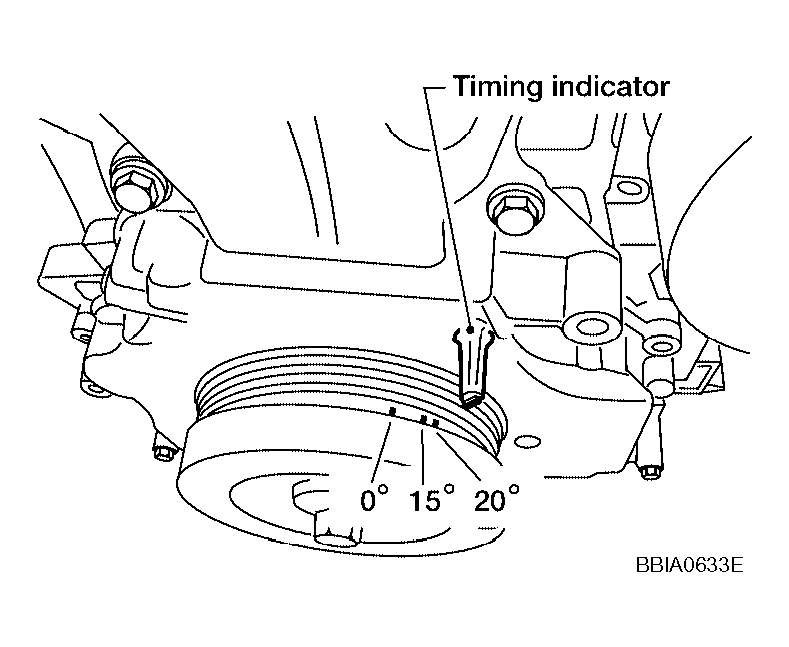

  2. Check ignition timing.
    Fig 2: Identifying Ignition Timing
    G04147071Courtesy of NISSAN MOTOR CO., U.S.A.
