Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Intelligent Power Distribution Module

G00366488

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Right Side Of Engine Compartment

G00366490

Courtesy of NISSAN MOTOR CO., U.S.A.

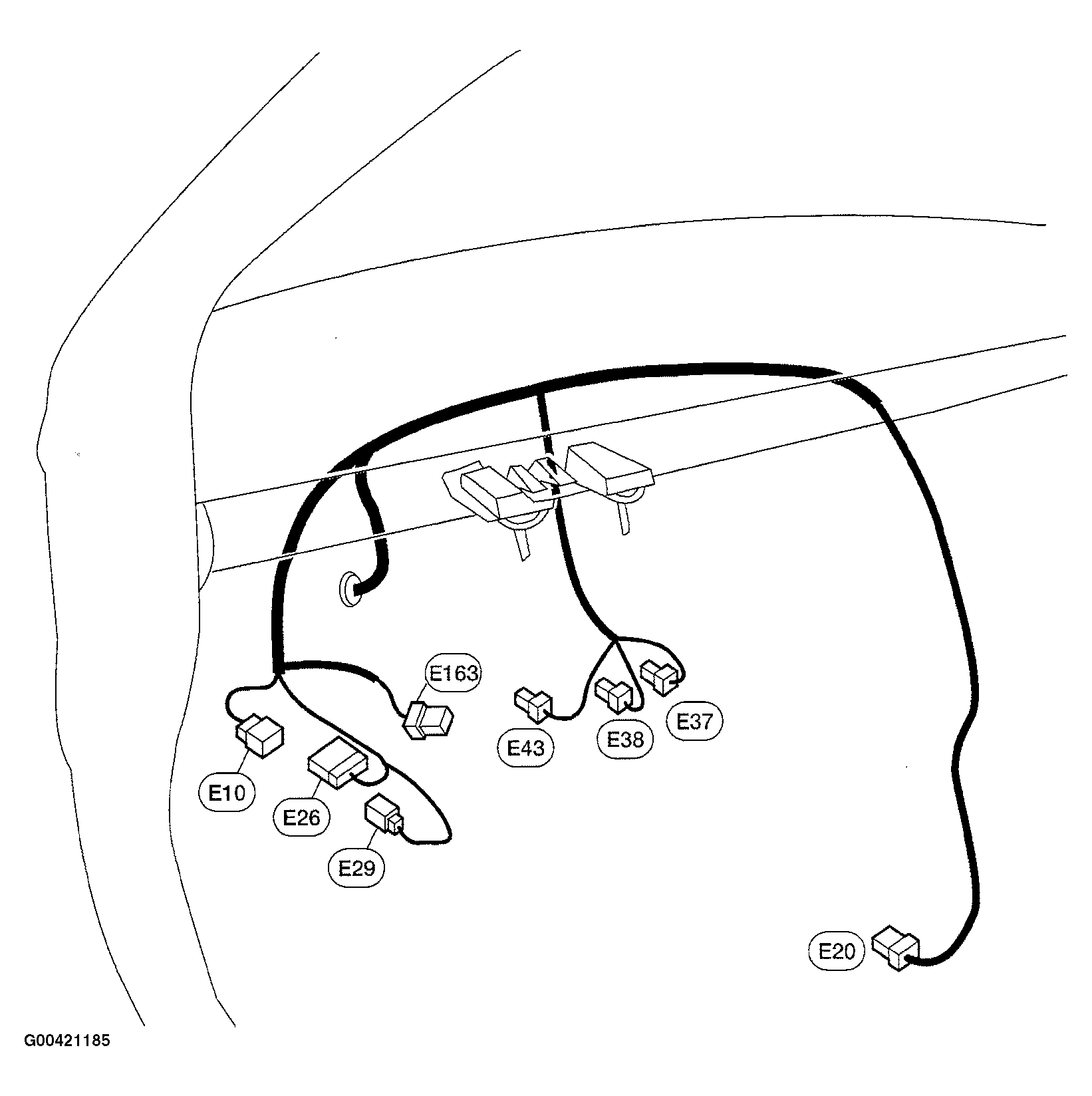

Fig 3: Under Left Side Of Dash

G00421185

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Left Side Of Engine Compartment

G00366492

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Engine Harness (2.5L)

G00366493

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Engine Harness (4.0L)

G00421183

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Rear Of Vehicle

G00364886

Courtesy of NISSAN MOTOR CO., U.S.A.

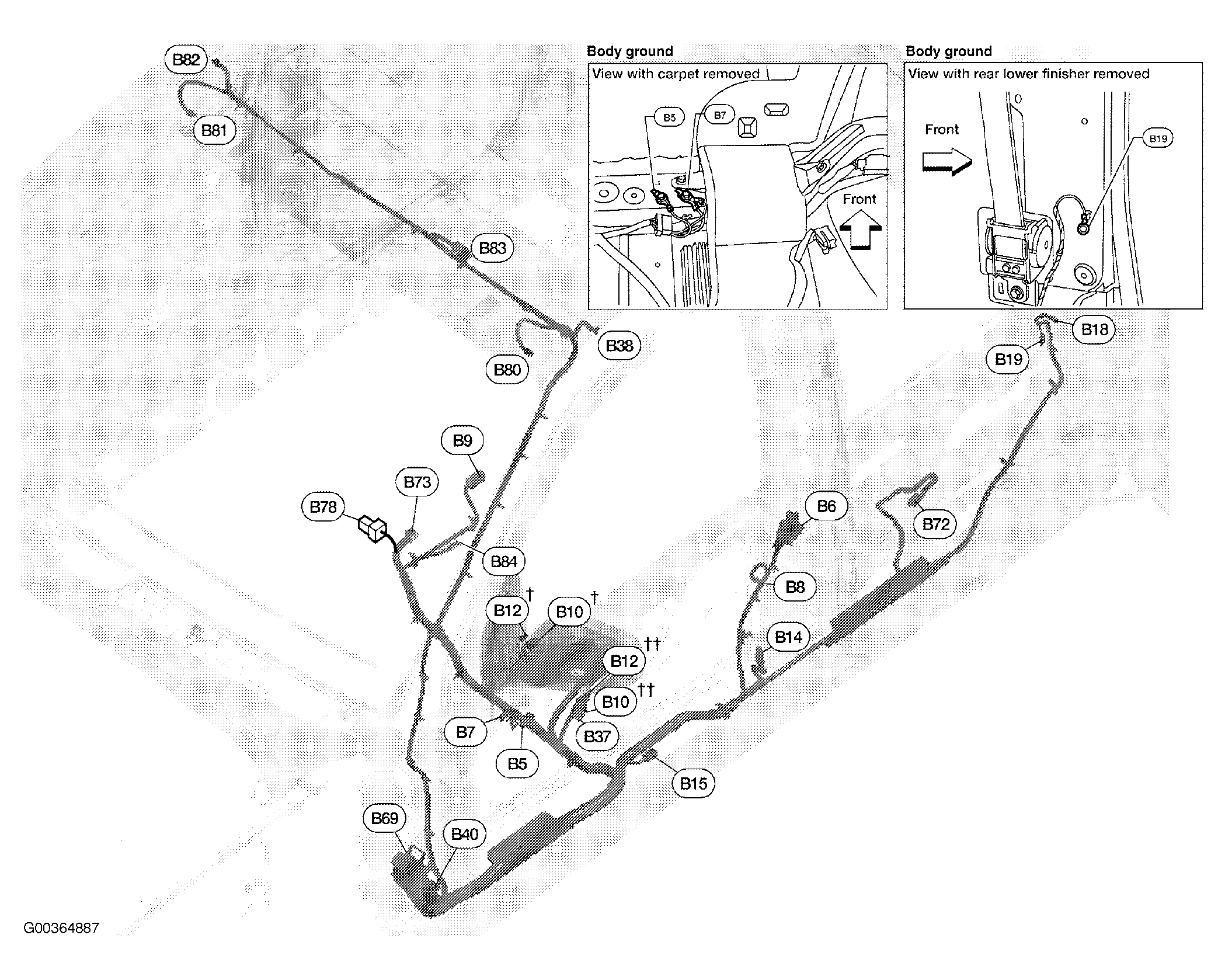

Fig 8: Left Side Of Passenger Compartment (King Cab)

G00364887

Courtesy of NISSAN MOTOR CO., U.S.A.

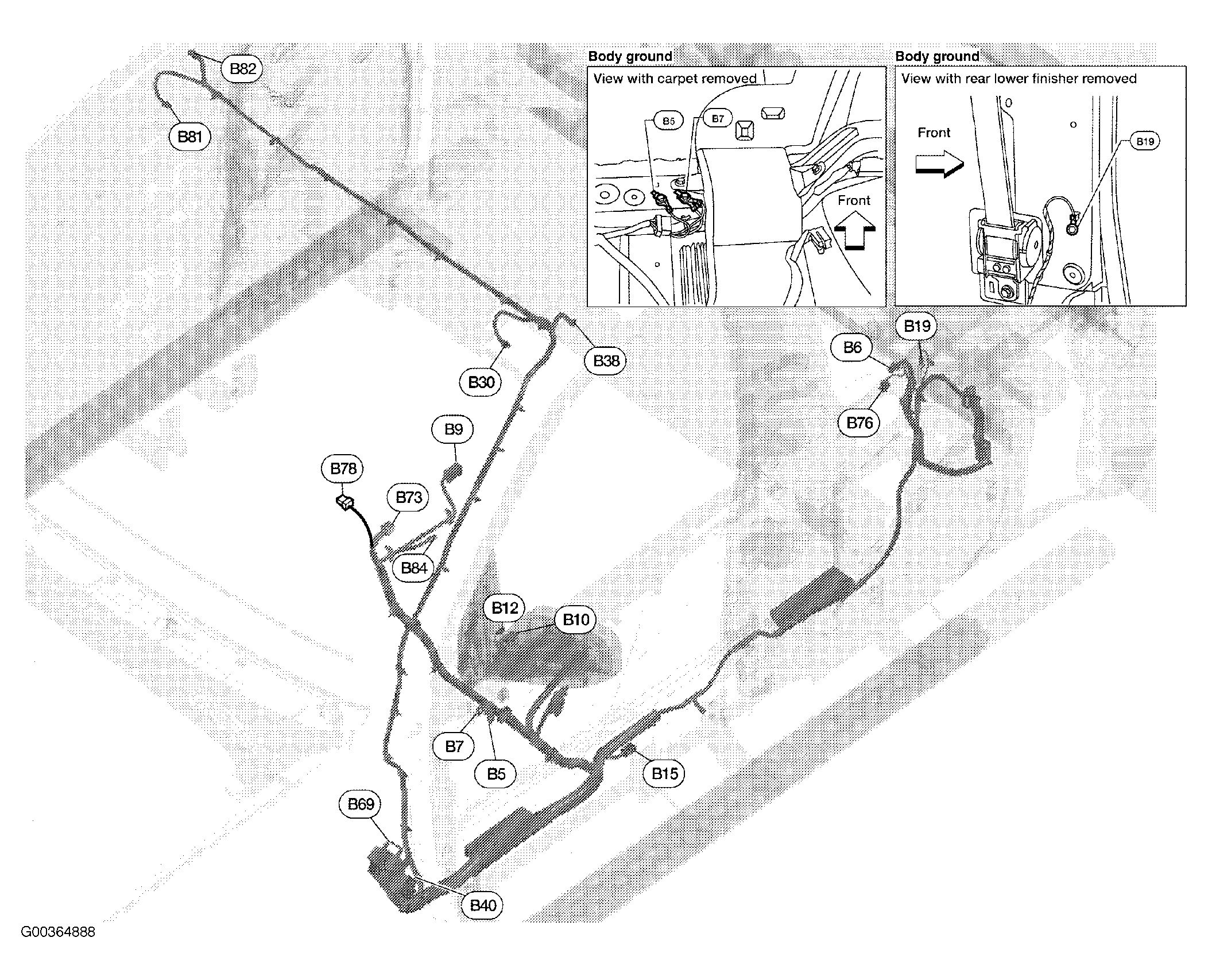

Fig 9: Left Side Of Passenger Compartment (Crew Cab)

G00364888

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Right Side Of Passenger Compartment (King Cab)

G00364889

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Right Side Of Passenger Compartment (Crew Cab)

G00364890

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Roof Harness

G00364891

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Left Front Door

G00364892

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Right Front Door

G00364893

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Left Rear Door (King Cab)

G00364894

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Right Rear Door (King Cab)

G00360267

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Left Rear Door (Crew Cab)

G00360268

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Right Rear Door (Crew Cab)

G00360269

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Engine Compartment

G00360270

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Passenger Compartment (1 Of 2)

G00360271

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Passenger Compartment (2 Of 2)

G00360272

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 22: Dashboard & Center Console

G00421184

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 23: Fuse & Relay Box

G00421186

Courtesy of NISSAN MOTOR CO., U.S.A.
