System Drawing
System Drawing

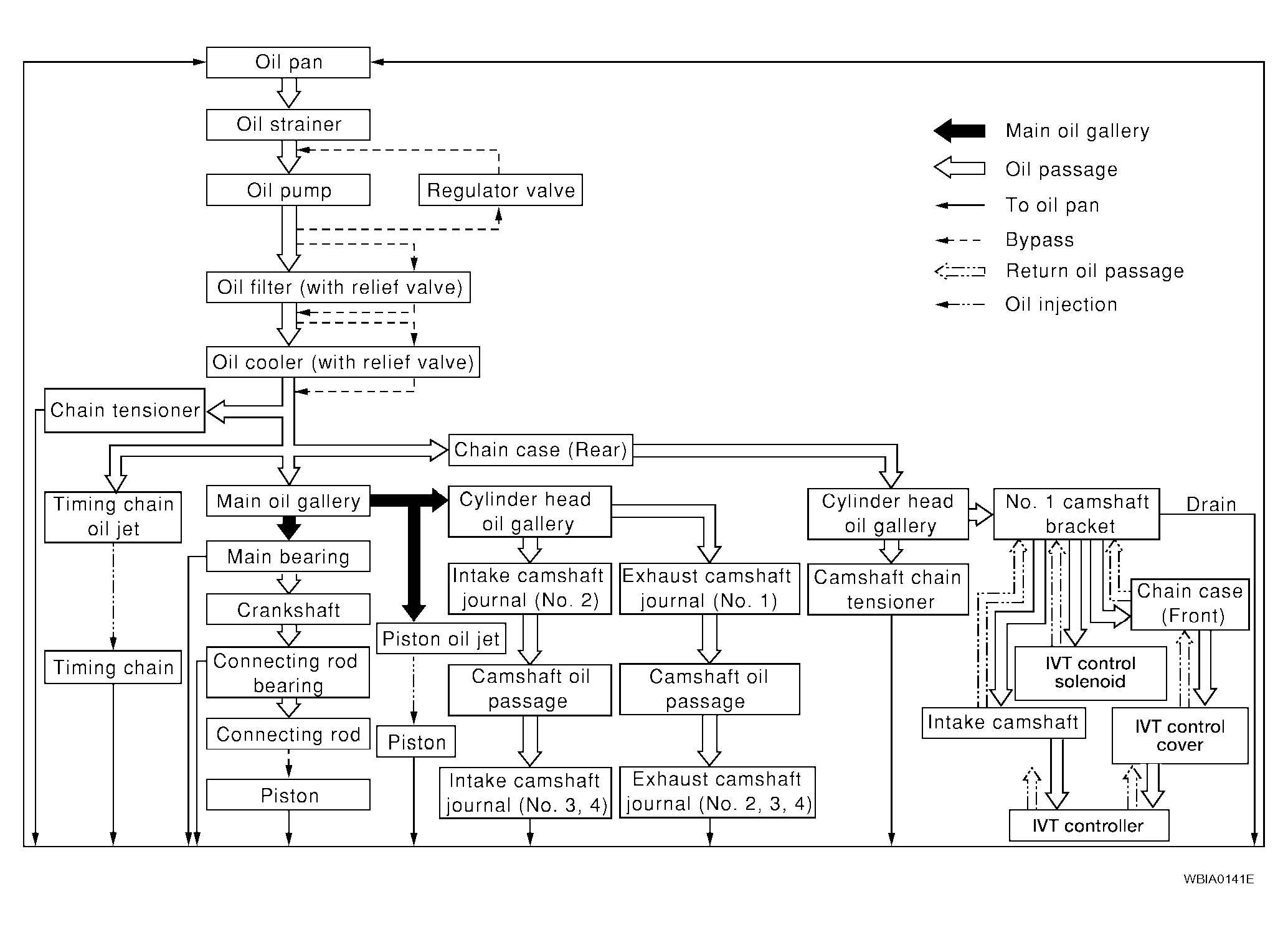

Fig 1: Identifying Lubrication System Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
