Disassembly and Assembly: Notes

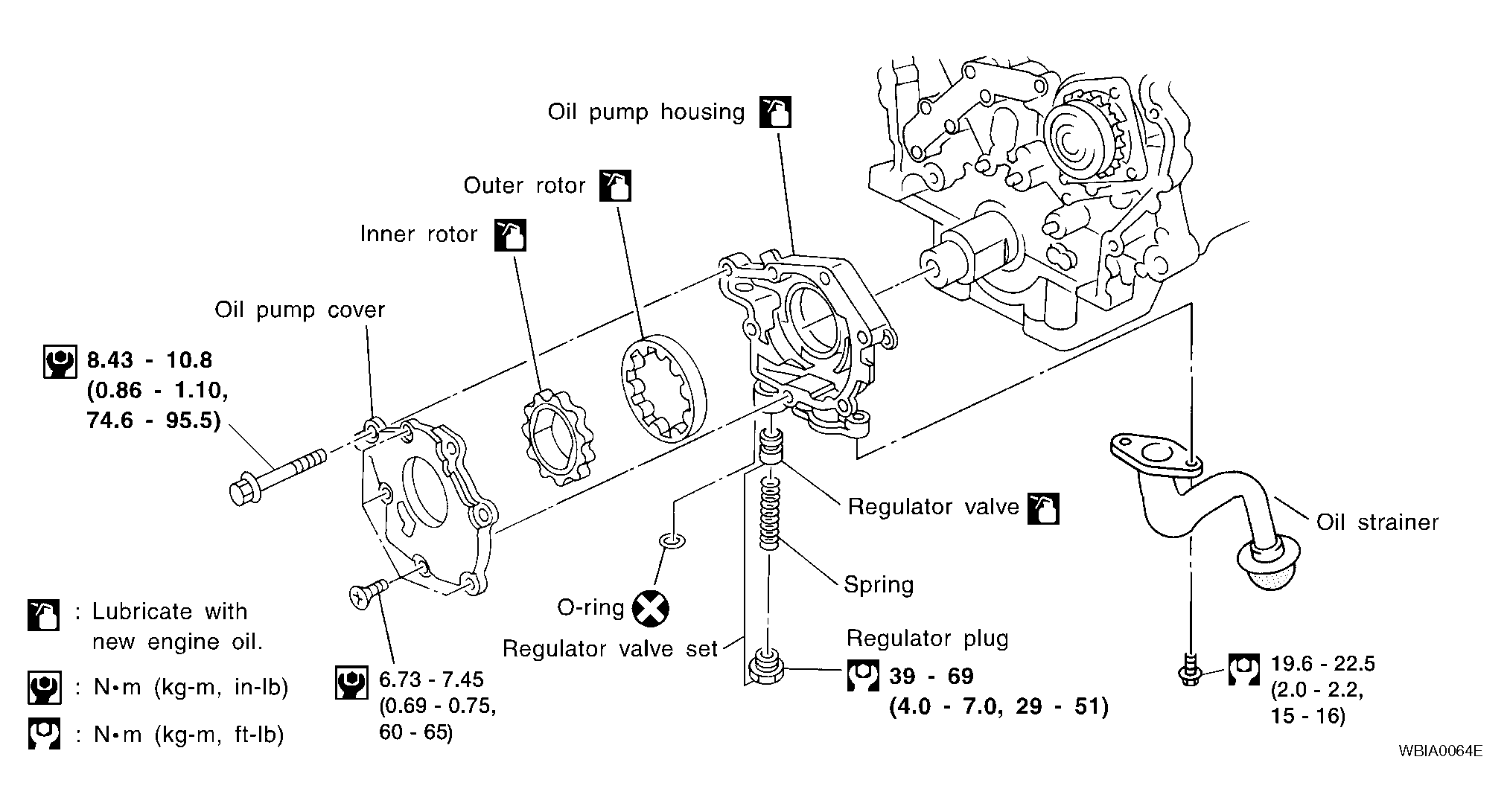

Fig 1: Oil Pump Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

• Disassemble as shown in  Fig 1 .
• Assembly is in the reverse order of Disassembly. When assembling the oil pump, apply engine oil to the rotors.
