Line Pressure Control: Notes

• The pressure control solenoid valve A controls linear line pressure by control signal from TCM and line pressure for clutches and brakes to reduce shift shock.
• This pressure control solenoid valve A controls the pressure regulator valve as the signal pressure and adjusts the pressure of the operating oil discharged from the oil pump to the line pressure most appropriate to the driving state.

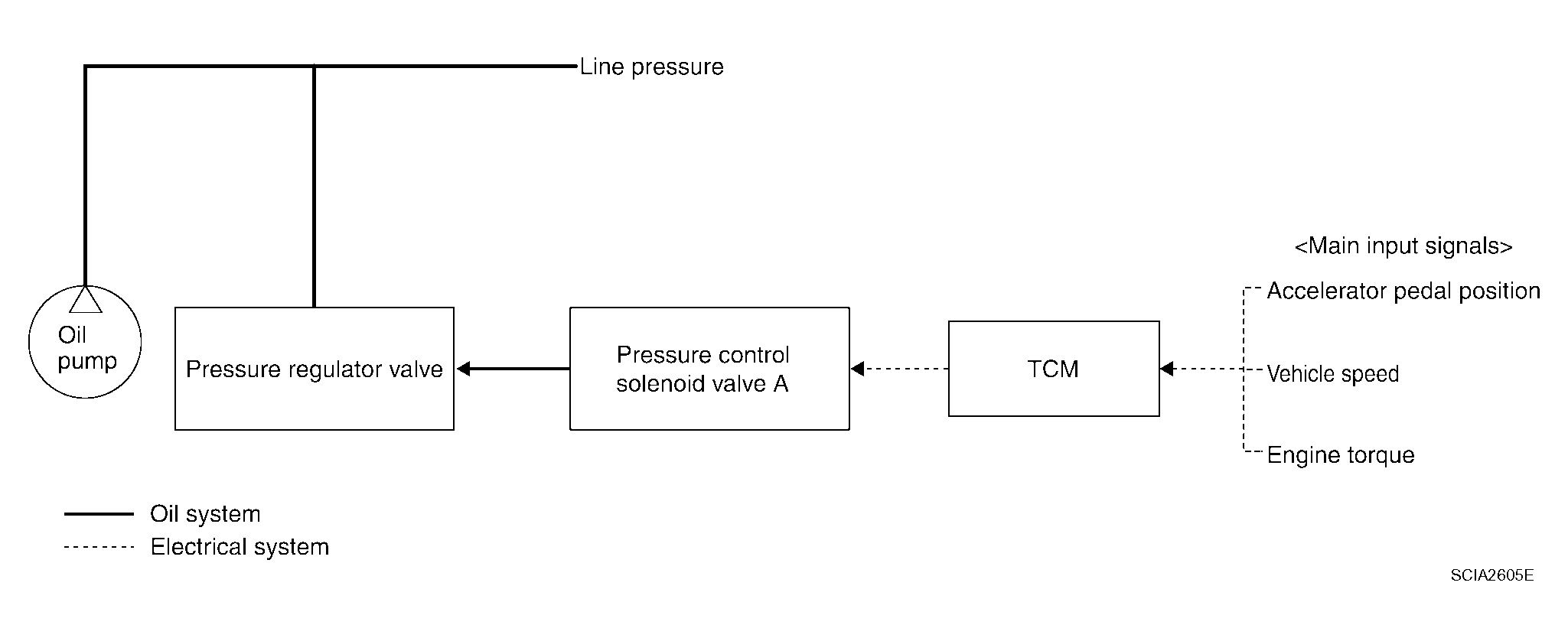

Fig 1: Line Pressure Control Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
