Nissan-Datsun
›
2006
›
Maxima SL
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Shift Control System
›
Control Device
Control Device

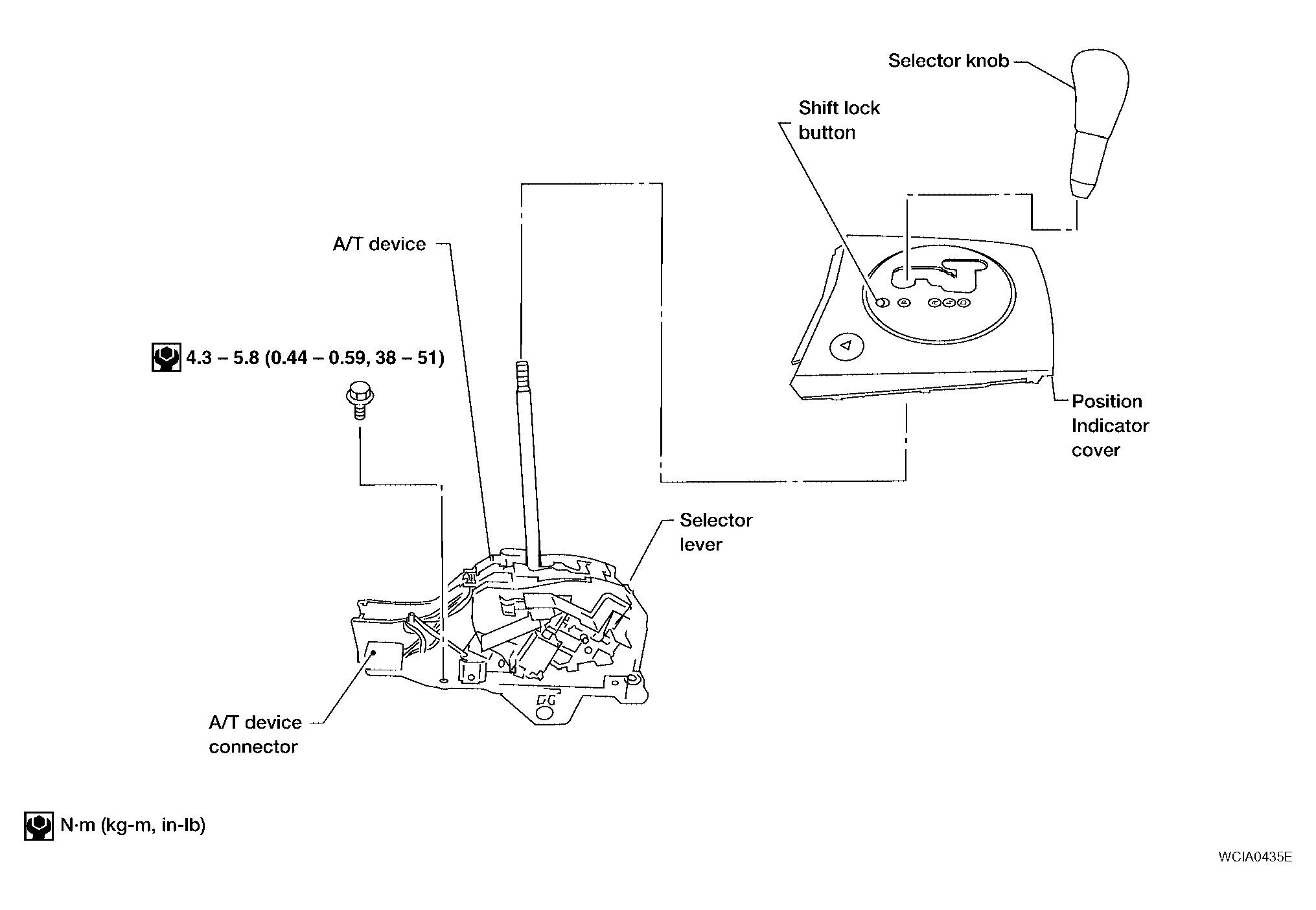

Fig 1: Control Device With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
