Murano S, AWD
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Abs
›
System Description
›
Hydraulic Circuit Diagram
›
Notes
Hydraulic Circuit Diagram: Notes

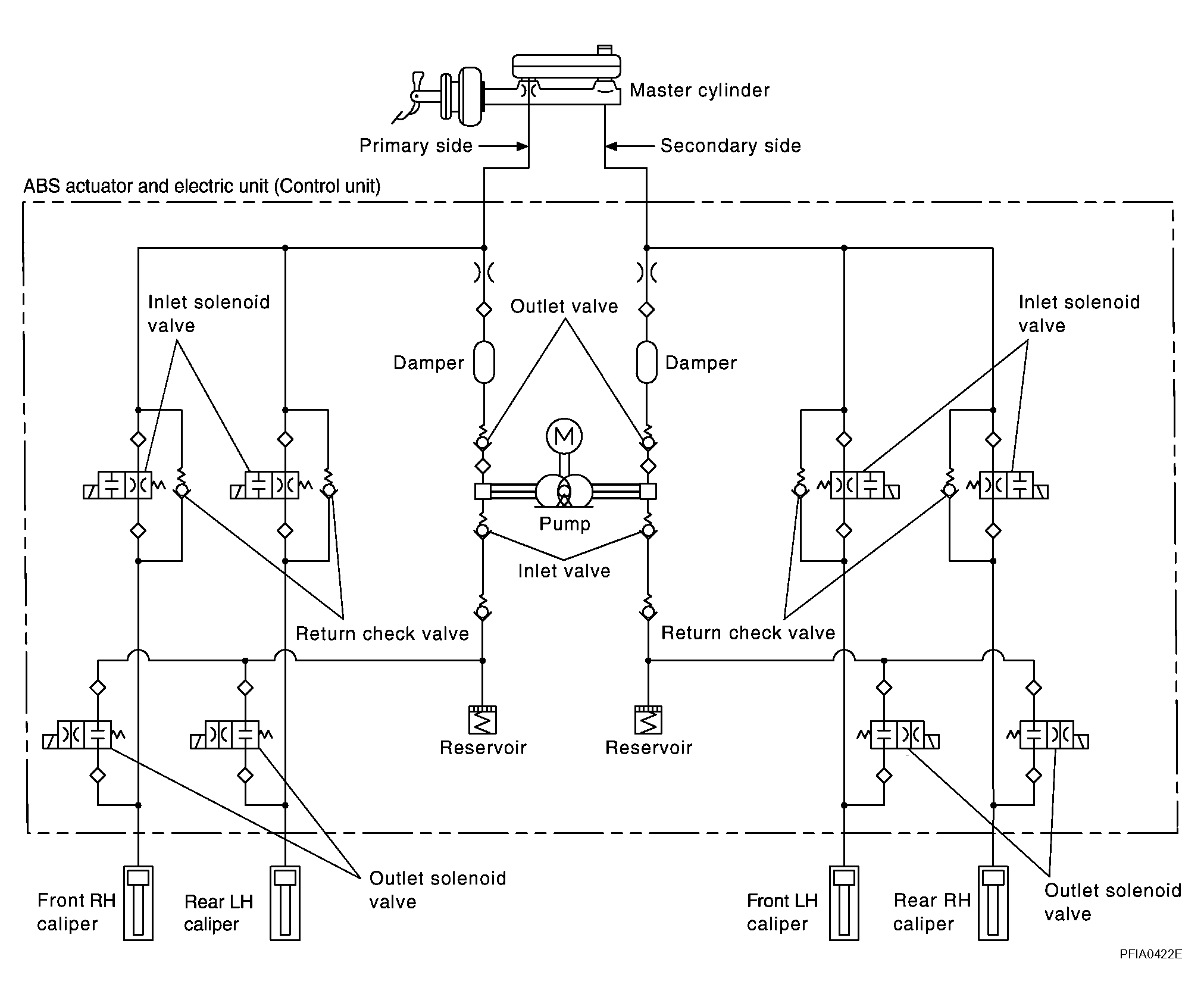

Fig 1: Hydraulic Circuit Diagram
