Notes
Removal and Installation: Notes

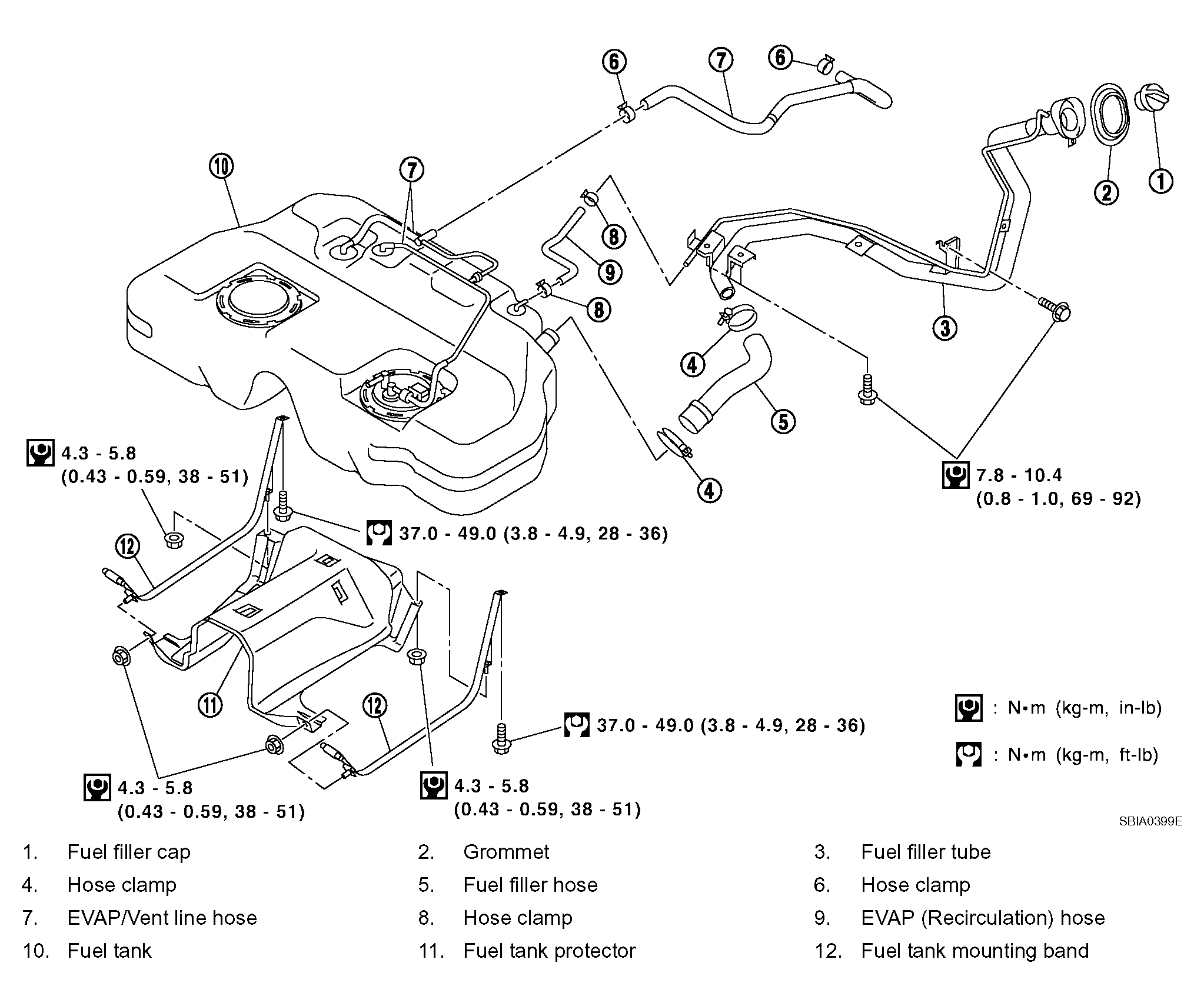

Fig 1: Removing/Installing Fuel Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
