Method A

  1. Attach timing light to loop wire as shown.

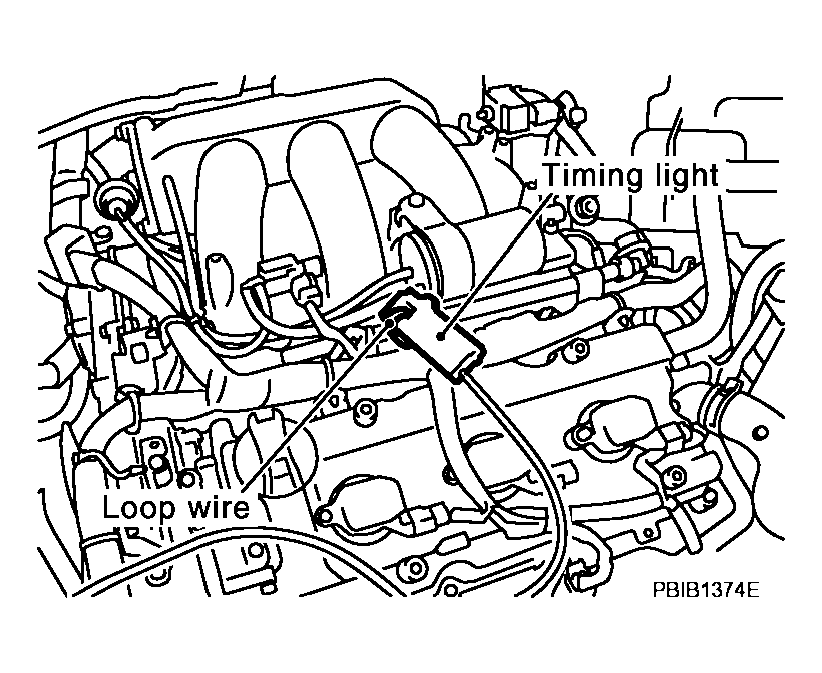

    Fig 1: Attaching Timing Light To Wires
    G04215823Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

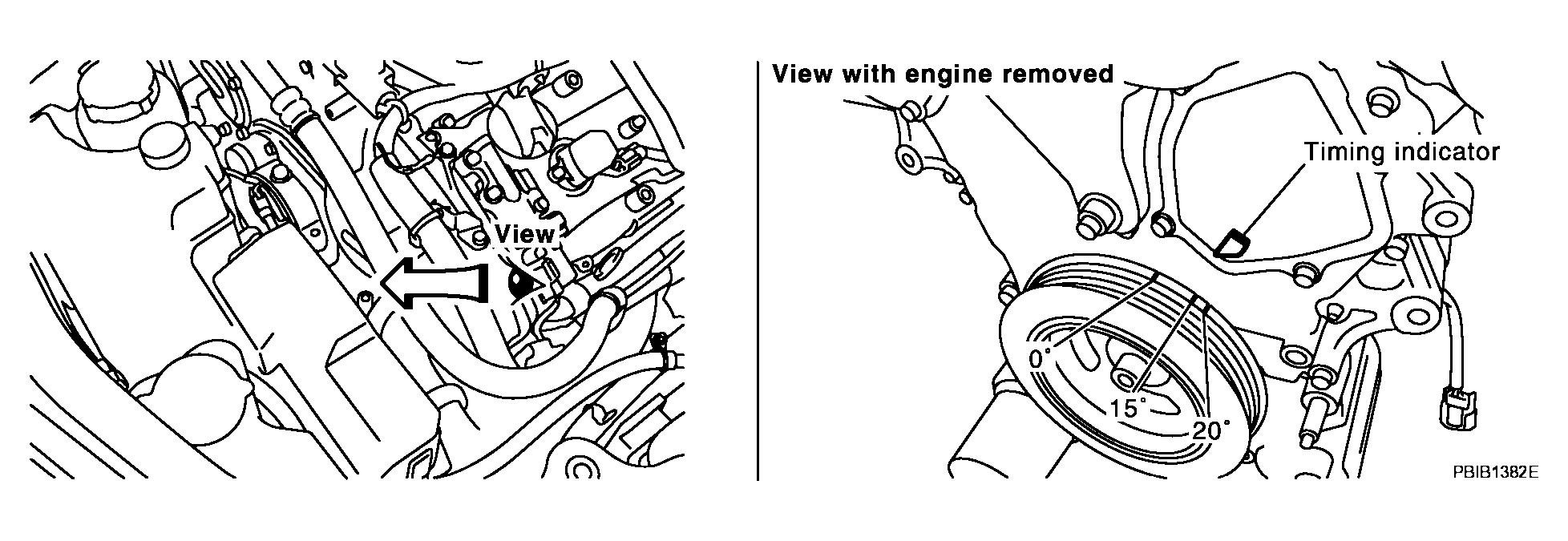

    Fig 2: Checking Ignition Timing
    G04215824Courtesy of NISSAN MOTOR CO., U.S.A.
