Bank 2

For PG references, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

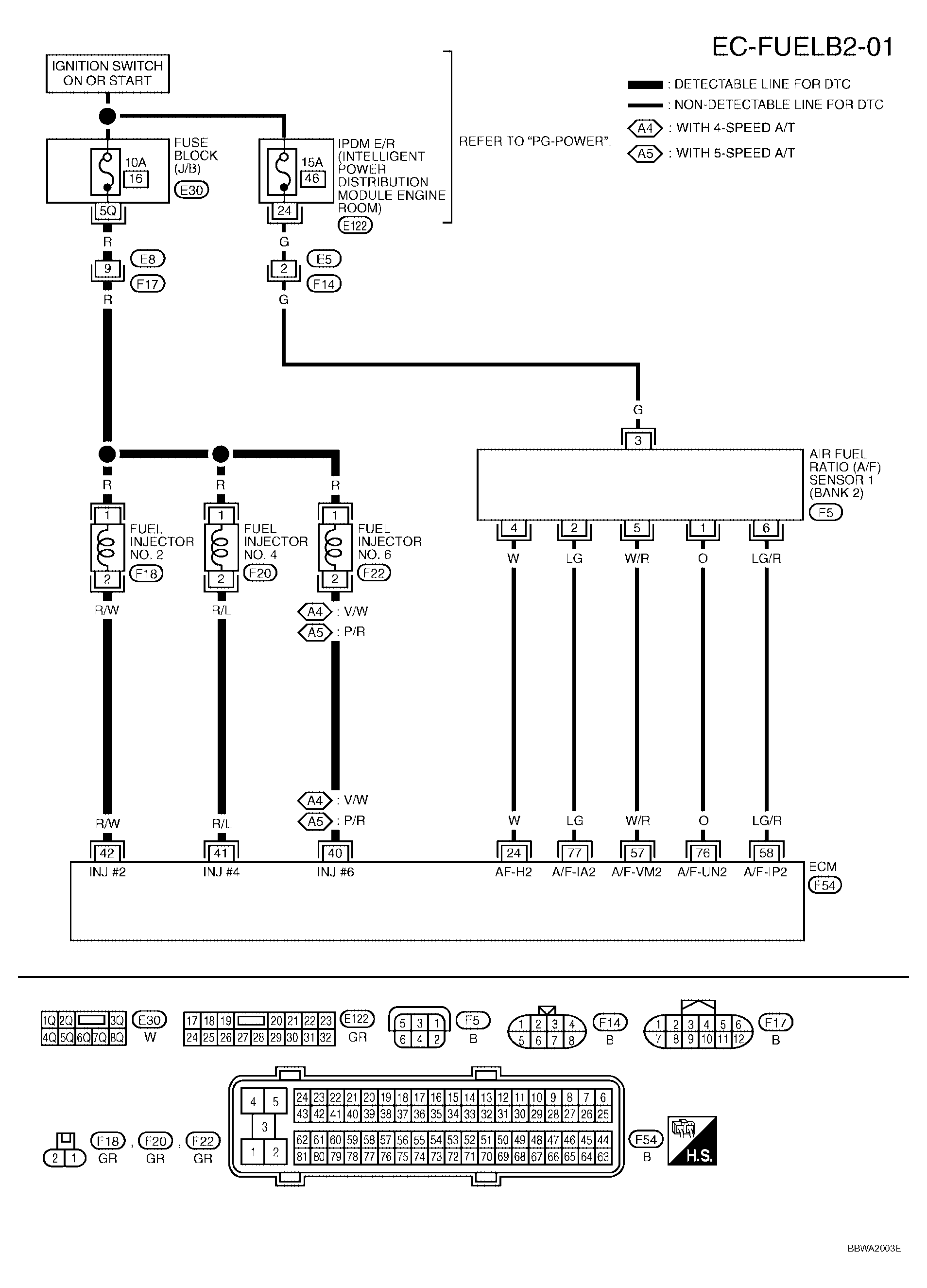

Fig 1: EC-FUELB2-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINAL WIRE COLOR ITEM CONDITION CHART

TERMINAL NO.

WIRE COLOR

ITEM

CONDITION

DATA (DC Voltage)

A/F sensor 1 heater (Bank 2)

[Engine is running]

Warm-up condition
Idle speed

Approximately 5V⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

40
41
42

V/W*¹
P/R*²
R/L
R/W

Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2

[Engine is running]

Warm-up condition
Idle speed
NOTE: The pulse cycle changes depending on rpm at idle

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

[Engine is running]

Warm-up condition
Engine speed is 2, 000 rpm.

BATTERY VOLTAGE (11 - 14V)⁽¹⁾

Courtesy of NISSAN MOTOR CO., U.S.A.

W/R

A/F sensor 1 (Bank 2)

[Engine is running]

Warm-up condition
Idle speed

Approximately 2.6V

LG/R

Approximately 2.3V

Approximately 3.1V

Approximately 2.3V

⁽¹⁾	Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
