DTC P0182, P0183 FTT Sensor: Wiring Diagram

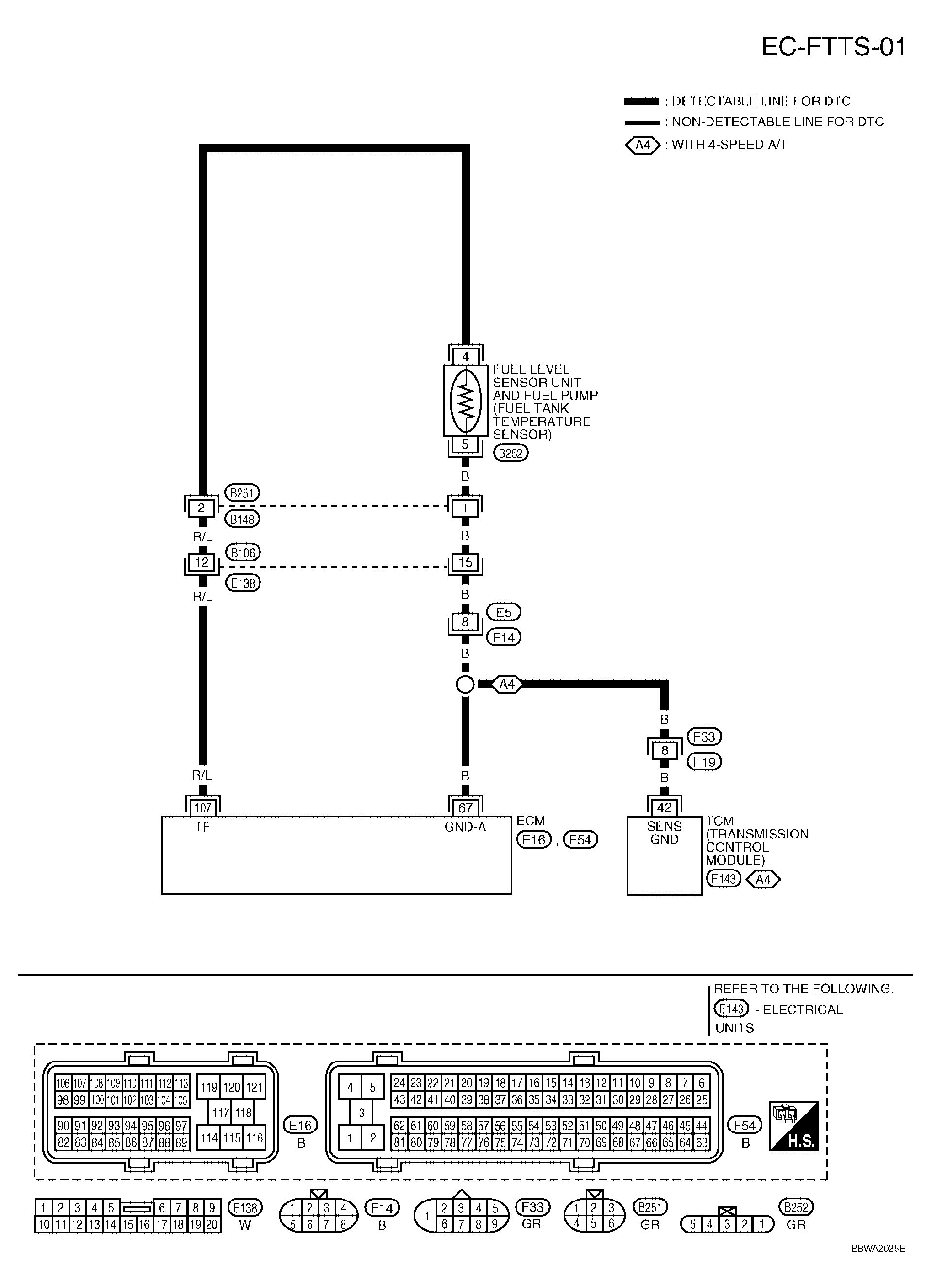

Fig 1: EC-FTTS-01 - Wiring Diagram
G04196740Courtesy of NISSAN MOTOR CO., U.S.A.
