Vacuum Hose Drawing

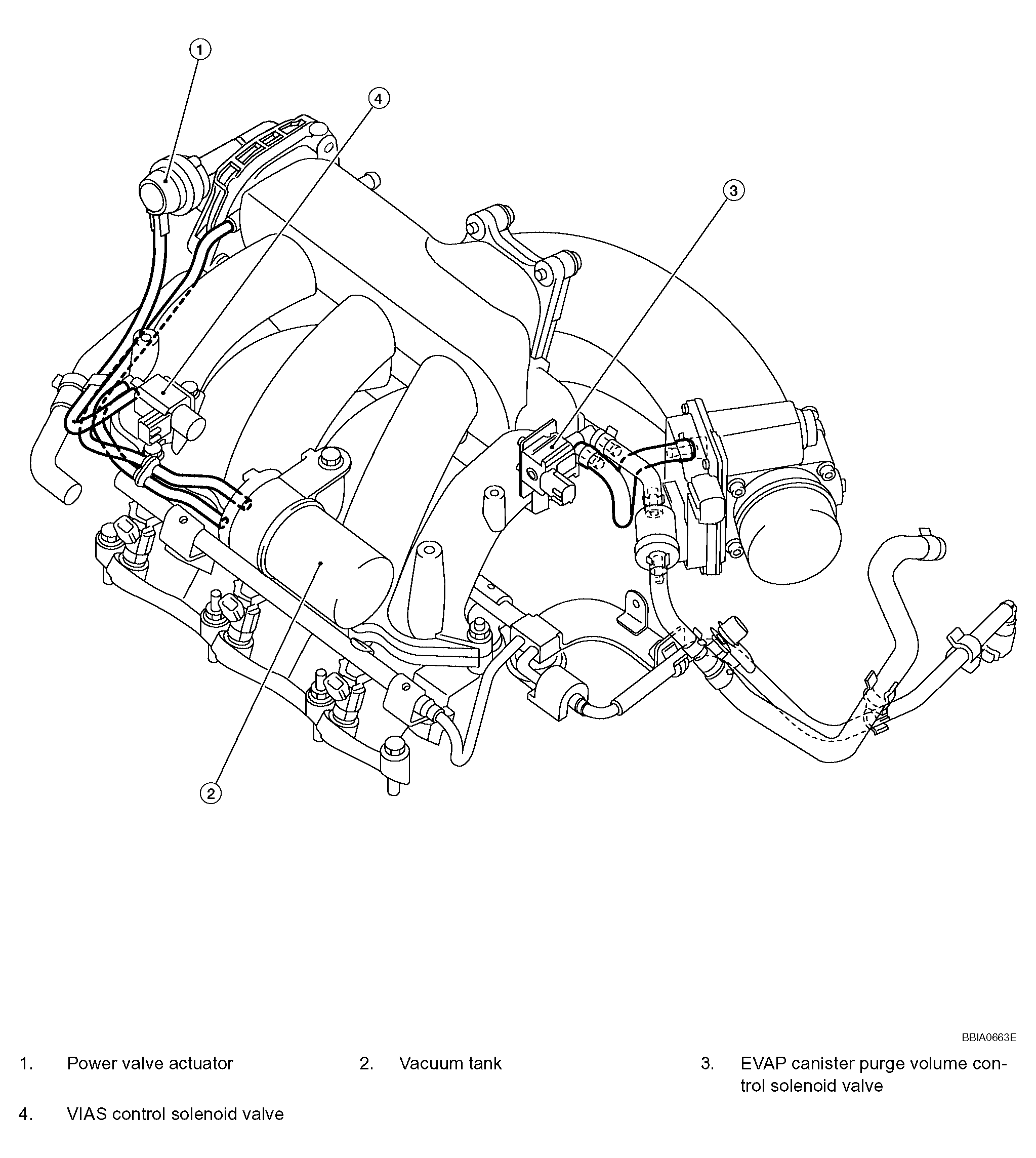

Fig 1: Identifying Vacuum Hose Locations
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses. Refer to , "
SYSTEM DIAGRAM
" for Vacuum Control System.
