ASCD Indicator: Wiring Diagram

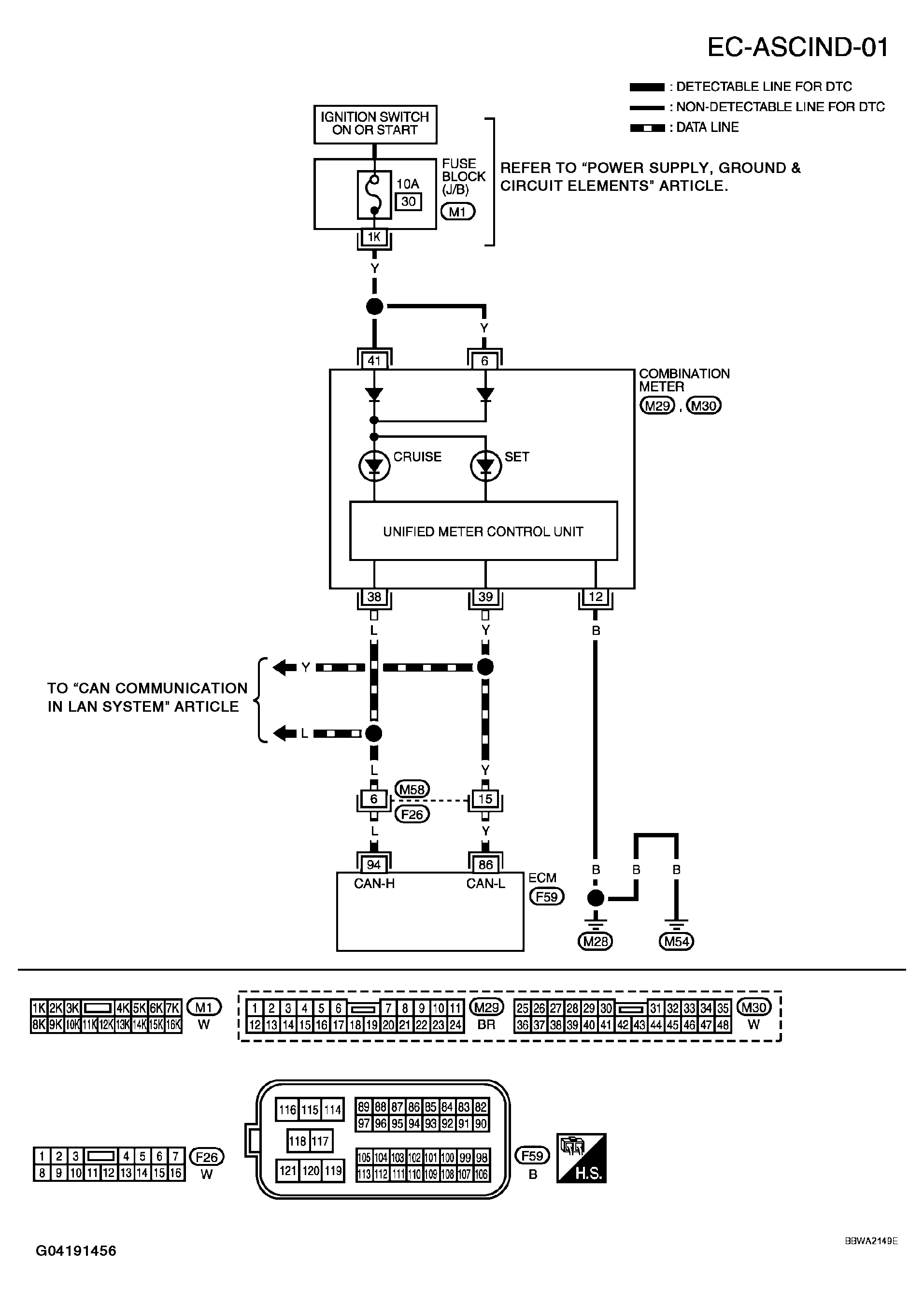

Fig 1: Identifying Wiring Diagram (EC-ASCIND-01)
G04191456Courtesy of NISSAN MOTOR CO., U.S.A.
