Method A

  1. Slide the harness protector of ignition coil No. 1 to clear the wires.
  2. Attach timing light to the ignition coil No. 1 wires as shown in the figure.
  3. Check ignition timing.

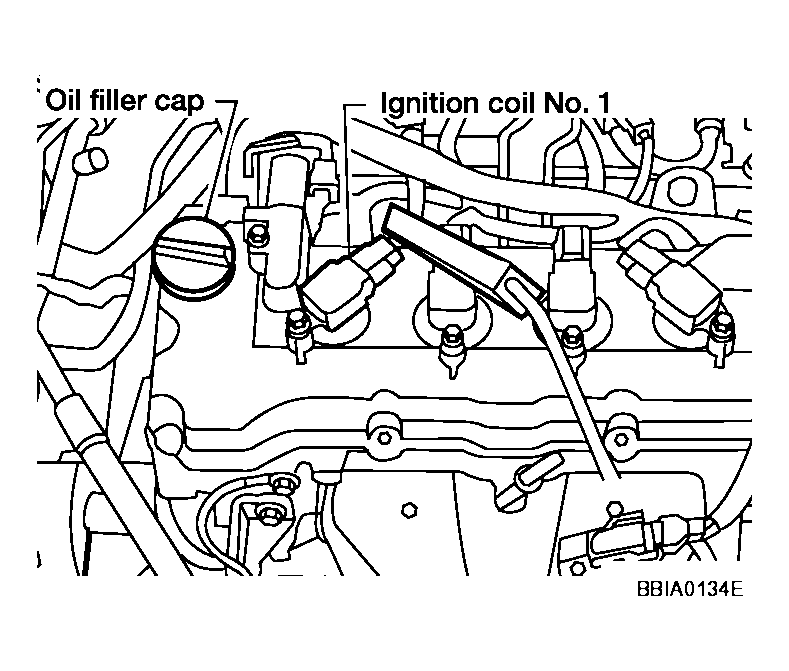

    Fig 1: Sliding Harness Protector Of Ignition Coil No. 1 To Clear Wires
    G04190812Courtesy of NISSAN MOTOR CO., U.S.A.

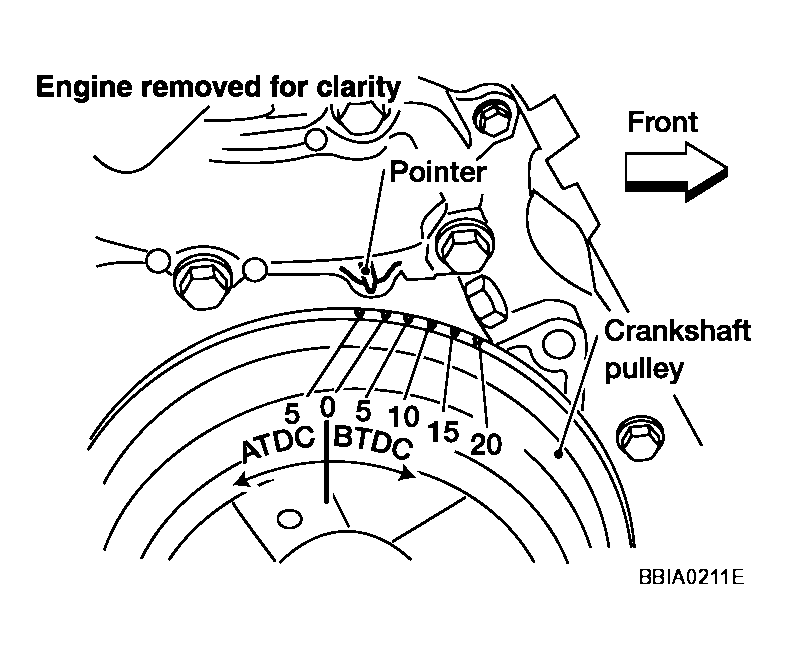

    Fig 2: Checking Ignition Timing
    G04190813Courtesy of NISSAN MOTOR CO., U.S.A.
