Vacuum Hose Drawing

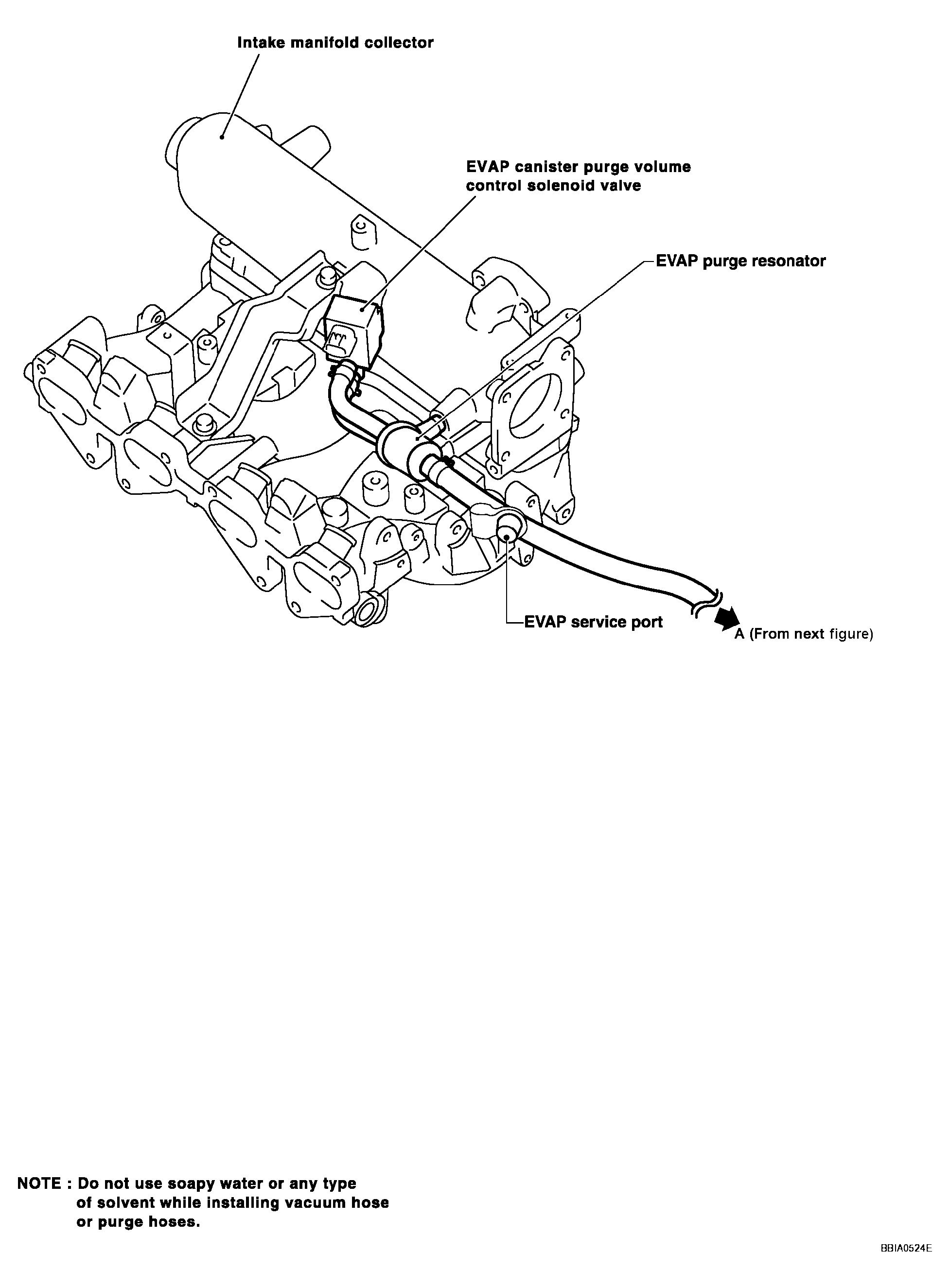

Fig 1: Identifying Vacuum Hose Drawing

G04190843

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to " SYSTEM DIAGRAM " for Vacuum Control System .
