Body Control System
›
Time Control Unit
›
Schematic (Without Power Door Locks)
Schematic (Without Power Door Locks)

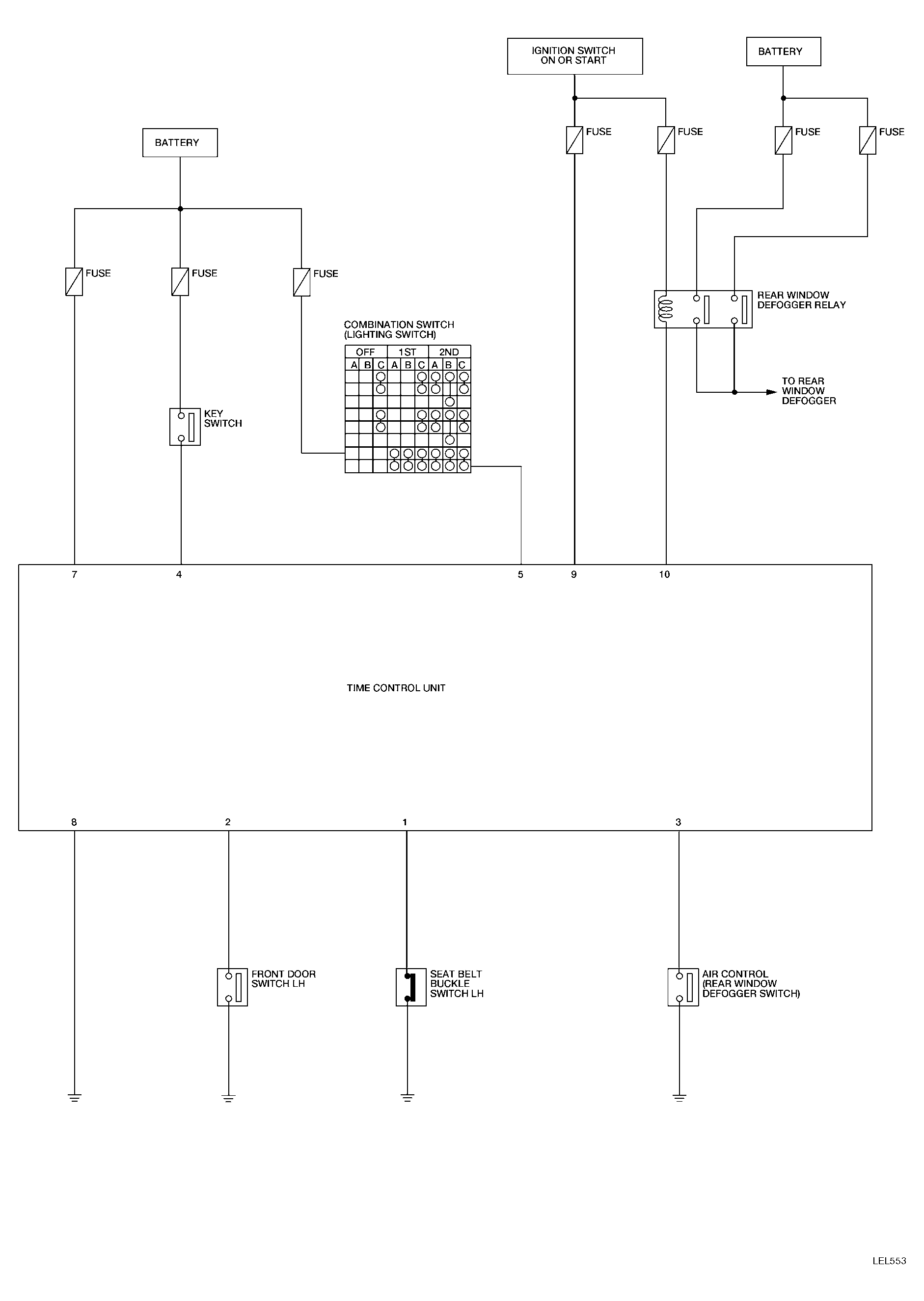

Fig 1: Smart Entrance Control Unit Schematic Diagram (Without Power Door Locks)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
