Body (Alignment): Alignment: Underbody: Measurement

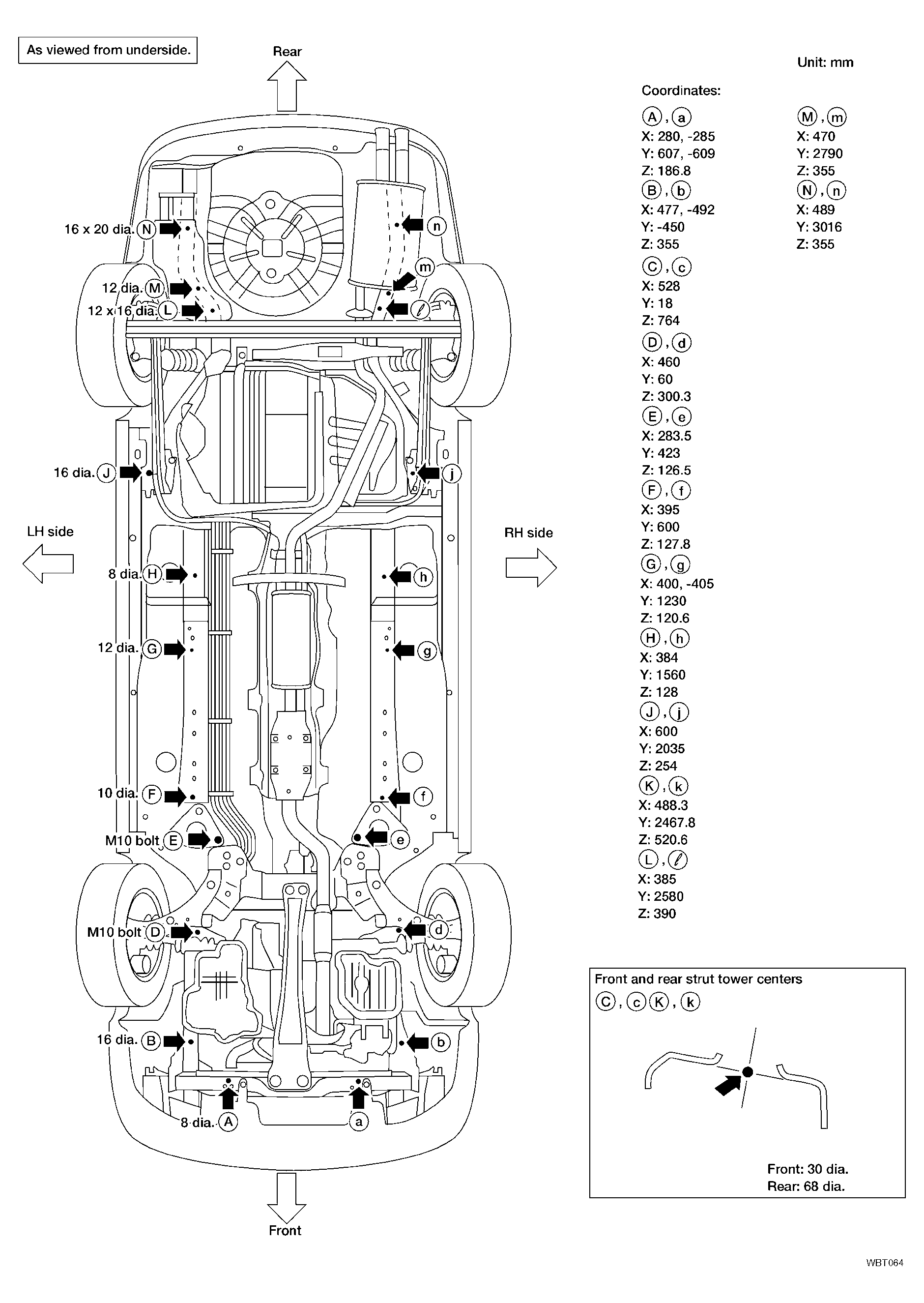

Fig 1: Identifying Underbody Measurement
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
