Sun Roof/T-Top/Convertible Top: Sunroof: Removal: Notes

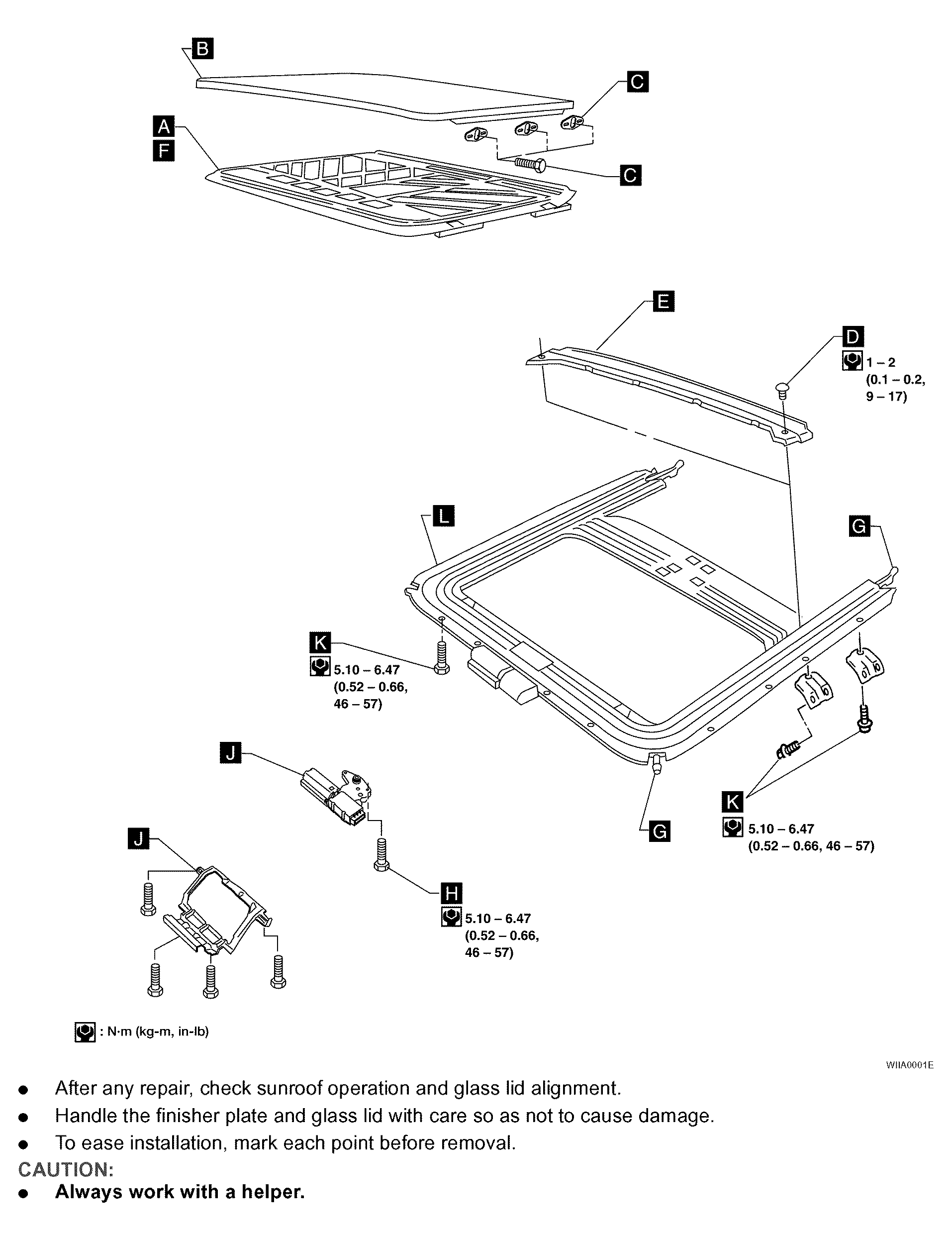

Fig 1: Exploded View Of Sunroof Assembly Components With Torque Specifications

G04195111

Courtesy of NISSAN MOTOR CO., U.S.A.

After any repair, check sunroof operation and glass lid alignment.
Handle the finisher plate and glass lid with care so as not to cause damage.
To ease installation, mark each point before removal.

CAUTION:

Always work with a helper.
Before removal, fully close the glass lid assembly, then after removal, do not move the motor assembly.
