Brake Control System: Description: Schematic

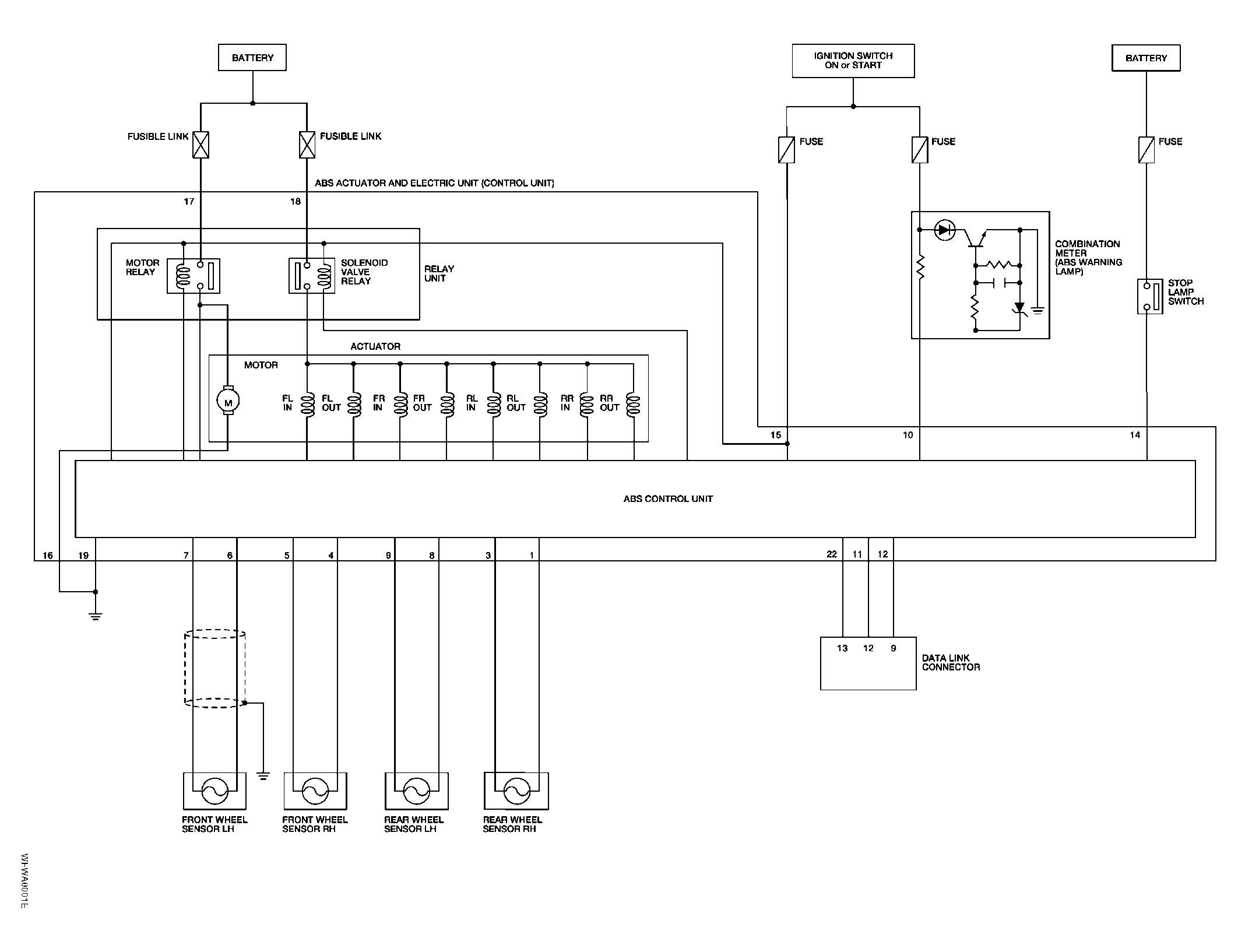

Fig 1: Brake Control System Schematic Diagram
G04194675Courtesy of NISSAN MOTOR CO., U.S.A.
