Sentra SE-R Spec V
›
Repair and Diagnosis
›
Steering
›
Power Steering System
›
Hydraulic Line
›
Removal and Installation
Removal and Installation

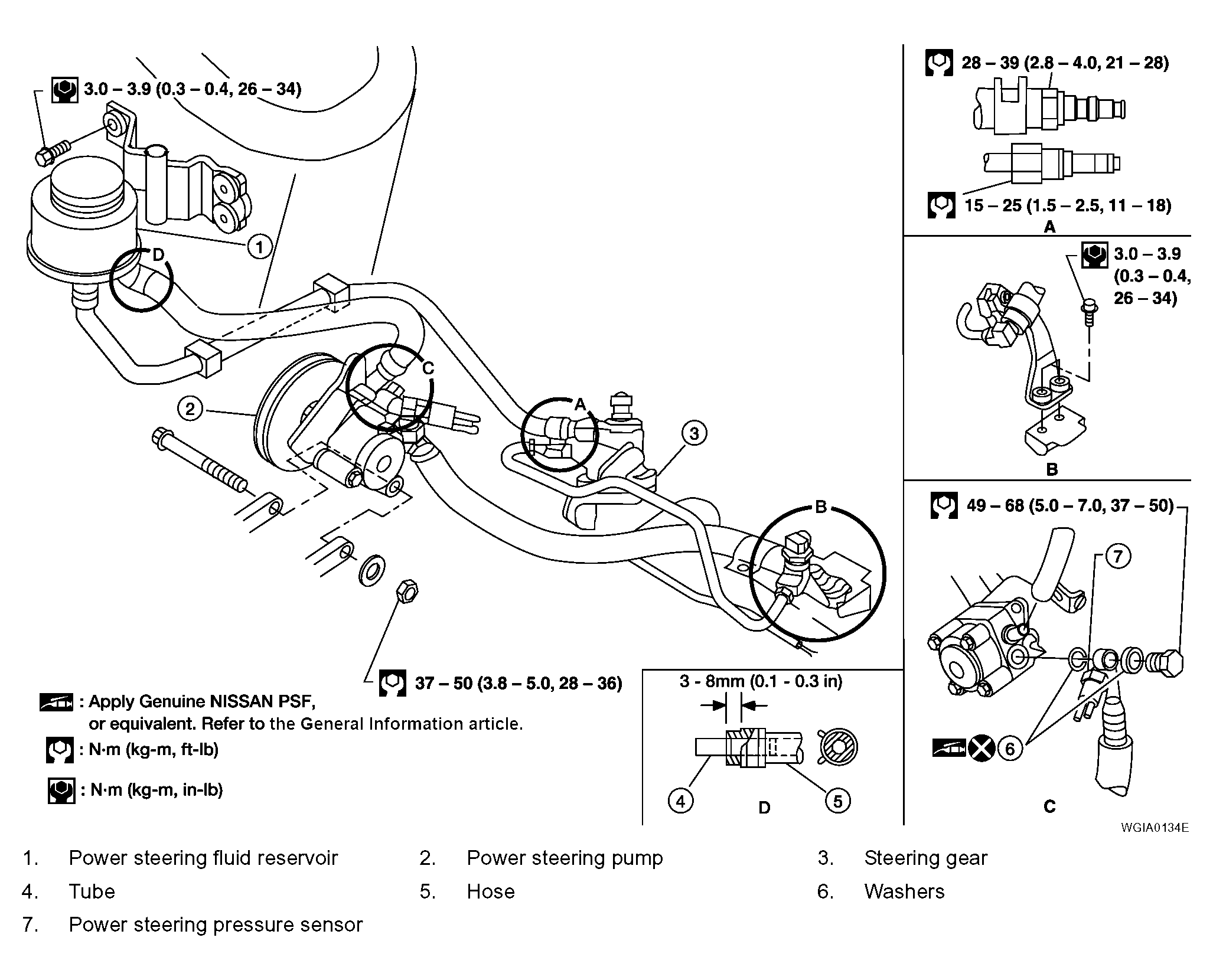

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications (QG18DE Engine)
Courtesy of NISSAN MOTOR CO., U.S.A.

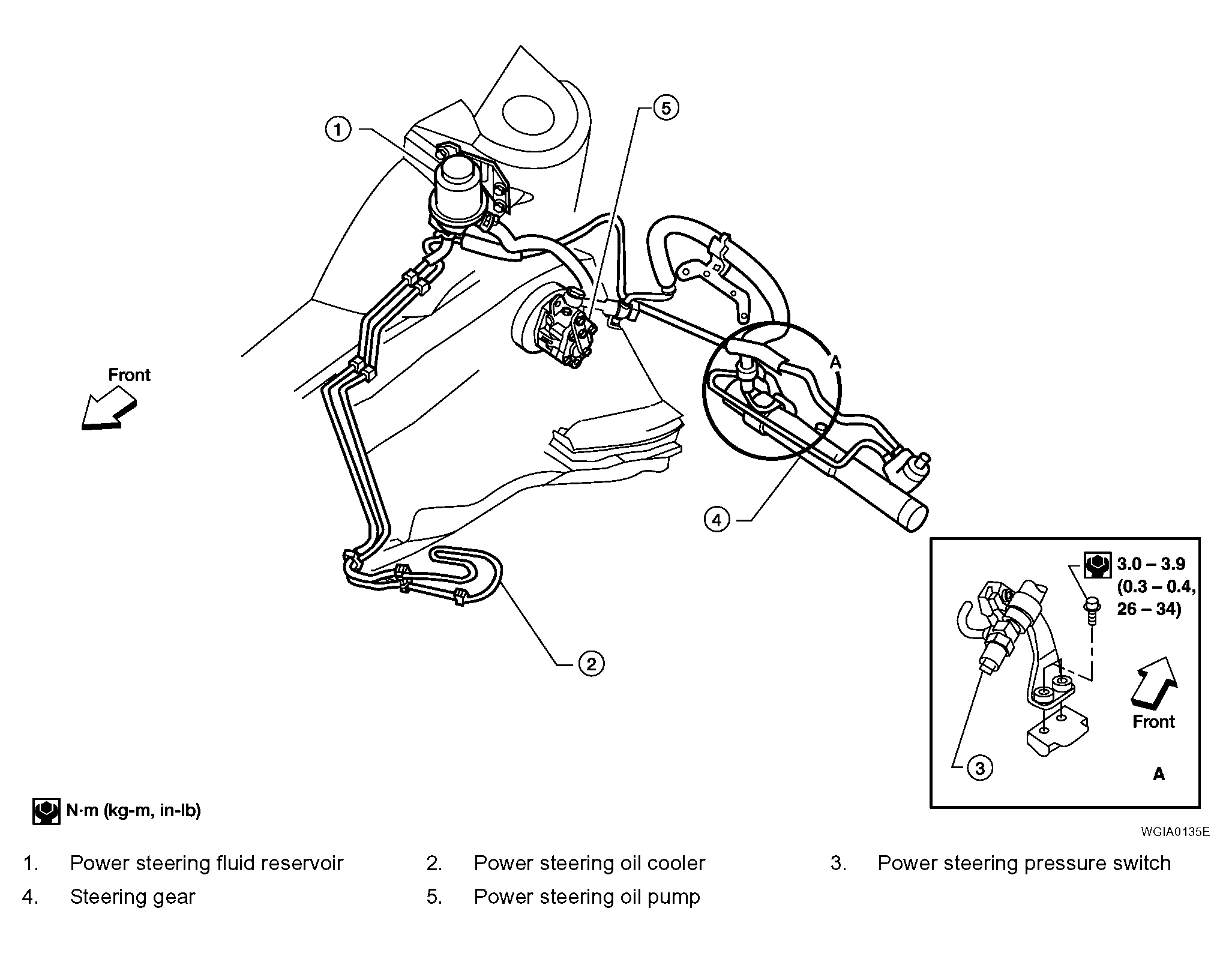

Fig 2: Exploded View Of Hydraulic Line With Torque Specifications (QR25DE Engine)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
