Disassembly and Assembly

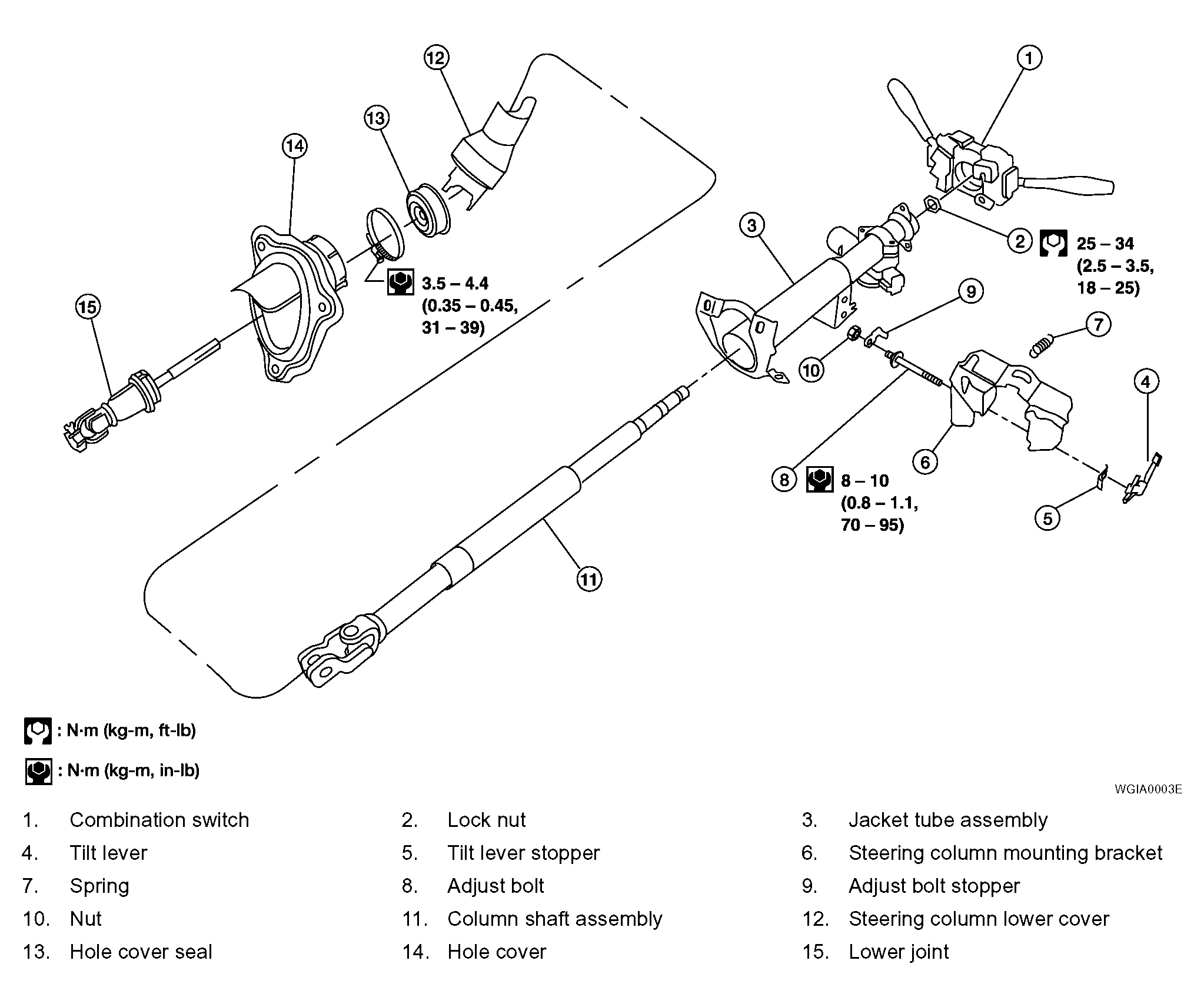

Fig 1: View Of Steering Column With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

• When disassembling and assembling, unlock steering lock with key.
• Install lock nut on steering column shaft and tighten the nut.
  Fig 2: Installing Lock Nut On Steering Column Shaft

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Steering lock:
  • Break self-shear type screws using a drill or other appropriate tool.
    Fig 3: Locating Self-Shear Type Screws

    Courtesy of NISSAN MOTOR CO., U.S.A.
  • Install new self-shear type screws, then tighten until screw heads break off.
    Fig 4: Installing Self-Shear Type Screws

    Courtesy of NISSAN MOTOR CO., U.S.A.
