RS5F70A
›
Transaxle Assembly
›
Component Parts
›
Final Drive Components
Final Drive Components

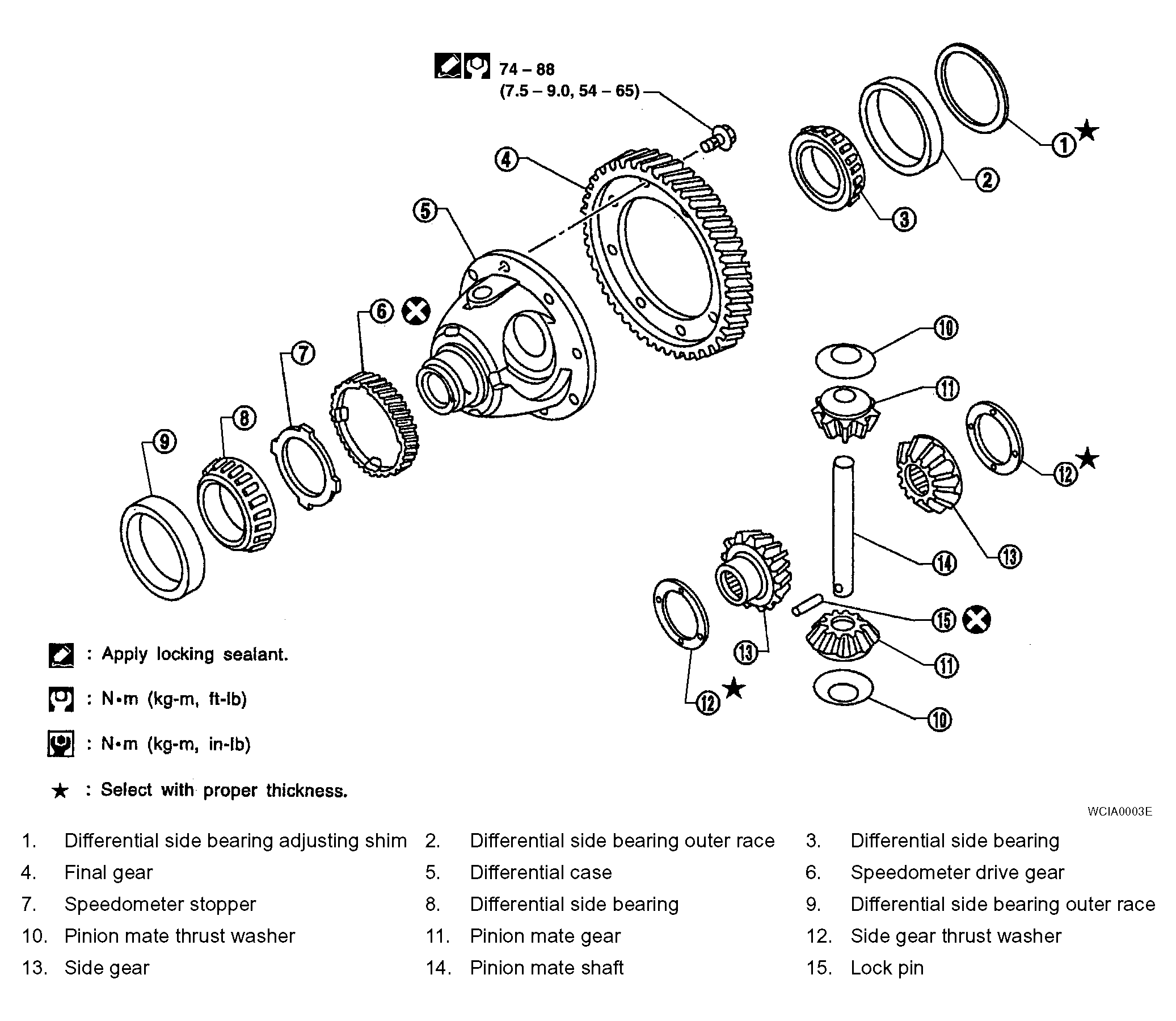

Fig 1: Exploded View Of Final Drive Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
