Nissan-Datsun
›
2006
›
Sentra SE-R Spec V
›
Repair and Diagnosis
›
Transmission
›
Manual Transmission
›
RS5F70A
›
Transaxle Assembly
›
Component Parts
›
Shift Control Components
Shift Control Components

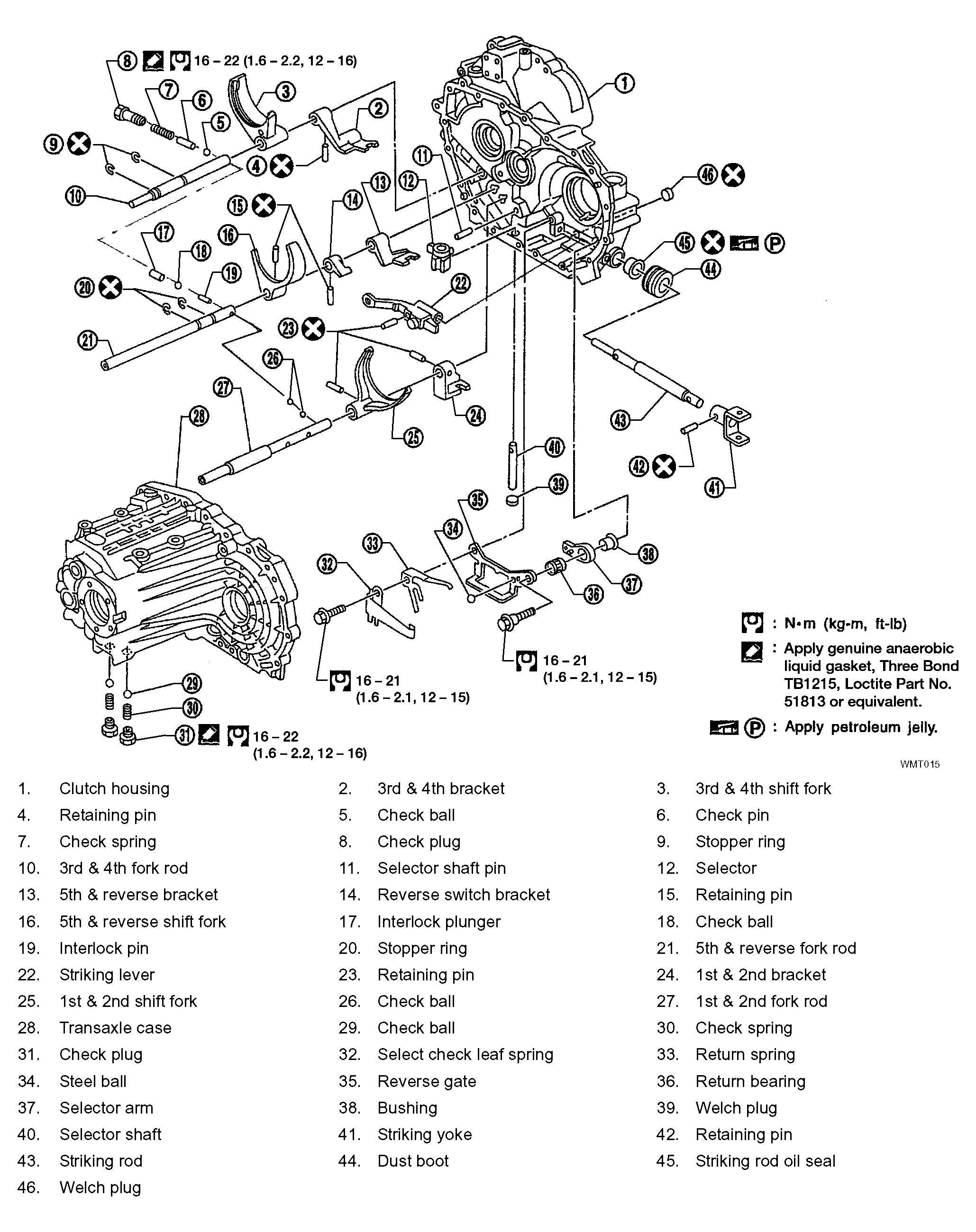

Fig 1: Exploded View Of Shift Control Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
