Back-Up Lamp Switch

BACK-UP LAMP SWITCH CONTINUITY SPECIFICATIONS

Gear position	Continuity
Reverse	Yes
Except reverse	No

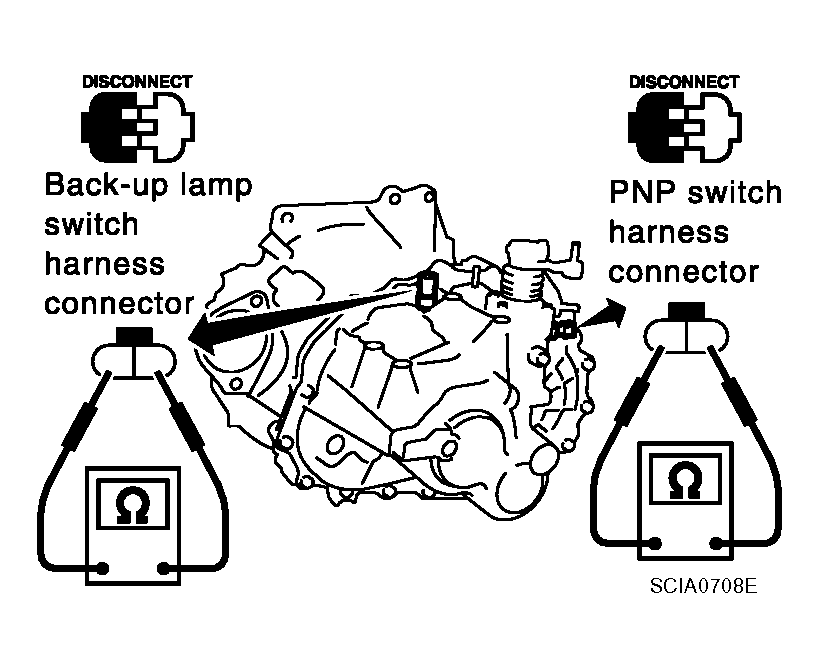

Fig 1: Measuring Continuity Between Back-Up Lamp Switch Connector Terminal

Courtesy of NISSAN MOTOR CO., U.S.A.
